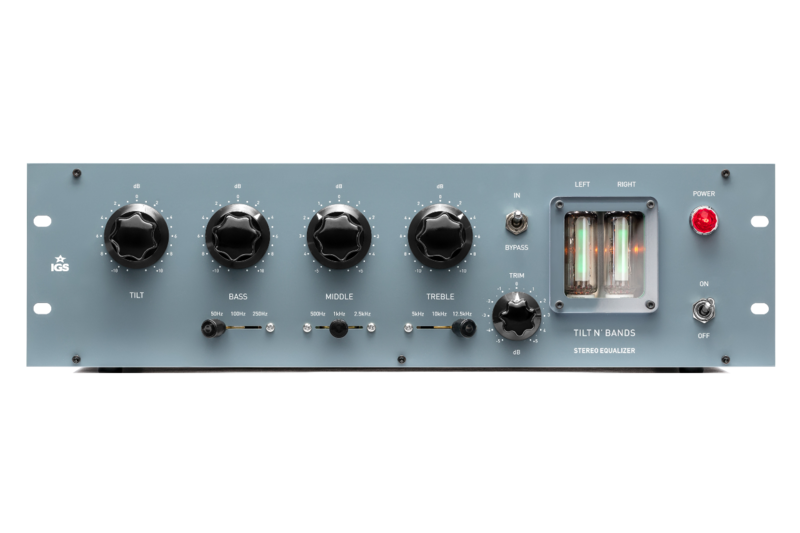

IGS Audio Tilt n Bands

Full tube mastering EQ

BASIC FEATURES

• Q factor    0.5 to 5
• Hard wire bypass    yes

INPUT & OUTPUT

• Input Impedance (balanced)    10k Ohm
• Output Impedance (balanced)    600 Ohm

LEVELS

• Operating Level    +4 dBu nominal
• Max output level    @ 1.6% THD +37 dBv; +26dBv @ 20 Hz
• Noise Level    -120dB

BANDWIDTH

• Frequency response    20 Hz to 40 kHz, +/-0.3dB

DISTORTION (@ 20 HZ - 20 KHZ)

• THD+N    0.08% (1KHz @ +4 dBu)
• Crosstalk    >120dB

FRONT PANEL

• VU Meters    Magic eye

POWER

• Voltage    230/115
• Power consumption    64W
• Power supply    Linear, internal

PACKING BOX

• Shipping weight    11kg

OTHERS

• Used for    Mastering, tracking
• Tube set    6x6N1P, 2x6E2
