- Plus version with trim knob for "Stereo Matching"

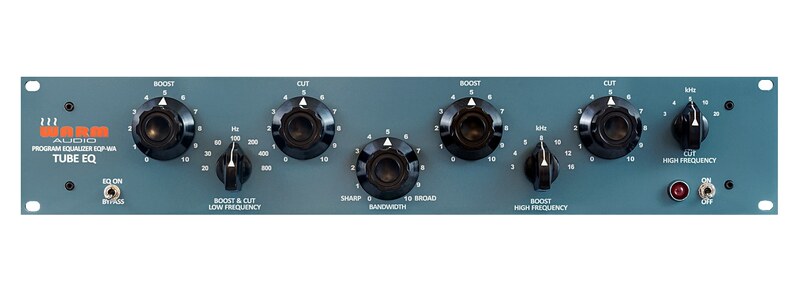

- Tube Equalizer based on the classic “Pultec” EQP-1A
- CineMag input and output transformers - Made in U.S.A.
- Premium high voltage 12AX7 and 12AU7 tubes
- CineMag inductor EQ section
- EQ section is bypassable - signal still passes through tubes and transformers for warming effect
- No insertion loss - loss restored by tube amplifier
- XLR and TRS transformer balanced inputs
- XLR and TRS transformer balanced outputs
- Flat frequency response from 20 Hz - 50 kHz
- Boost and Cut controls can be used simultaneously for phase effect
- Low frequency boost - 20, 30, 60, 100, 200, 400, 800 Hz - 12 db
- Low frequency cut - 20, 30, 60, 100, 200, 400, 800 Hz - 18 db
- High frequency boost - 3, 4, 5, 8, 10, 12, 16 kHz - 18 db
- High frequency cut - 3, 4, 5, 10, 20 kHz - 14 db
- 5 added frequency points for greater flexibility
- Switchable 115/230 volt IEC power inlet
- Dimensions: 19 x 3.5 x 6 inches - 2RU rack mountable
