IGS Audio 825EQ

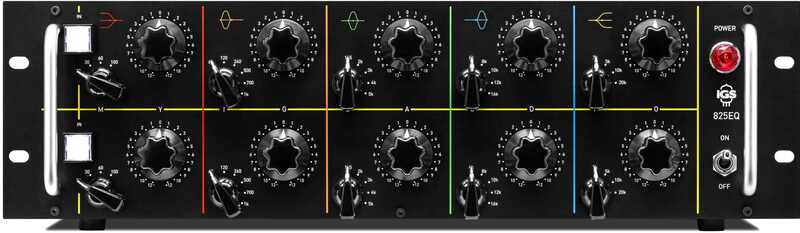

Dive into a world where audio precision and warmth meet in harmony with the IGS 825EQ Stereo Equalizer. Tailored for studio professionals, this unit is not just an equalizer; it’s your partner in crafting recordings that stand out. Housed in a streamlined 3U 19″ rack mount, the IGS 825EQ is designed to elevate your studio experience, offering unmatched flexibility and intuitive control over a wide range of sound shaping possibilities.

• Basic features
  • All stepped manipulators24 pole Elma switches
  • Boost/Cut Range+/-6dB or +/-12dB, specified by orders
  • Hard wire bypassNo. The signal still goes by transformers and tubes
  • Q factorVariable (Proportional), 0.3 - 6
• Input & Output
  • Audio transformersInput & Output: UTM transformers
  • Input Impedance (balanced)XLR, 10k Ohm, UTM2546
  • Interstage transformersYes, UTM3525, gapped
  • Output Impedance (balanced)XLR, 600 Ohm, UTM3525
• Levels
  • Operating Level+4 dBu
  • Max input level+22 dBu
  • Max output level+26 dBu
  • Dynamic Range>112 dB (@ 1kHz, +24 dBu)
  • Max. gain0dB; +/-12dB each band
• Bandwidth
  • Frequency response10Hz - 50kHz (+/-0.4 dB)
• Distortion (@ 20 Hz - 20 kHz)
  • Signal to Noise Ratio102dB @ +24dBu, 1kHz
  • THD+N<0.049% @ +24dBu, 1kHz
  • Crosstalk96 dB @+4dBu, 1kHz
• Power
  • Voltage115/230V, 60/50Hz
  • Power consumption45W
  • Power supplyinternal, linear
• Packing box
  • Dimensions70x40x30 cm
  • Shipping weight12 kg
• Others
  • Tube set6xECC88 or 6xE88CC or 6x6N23P or 6x6N1P-EV
