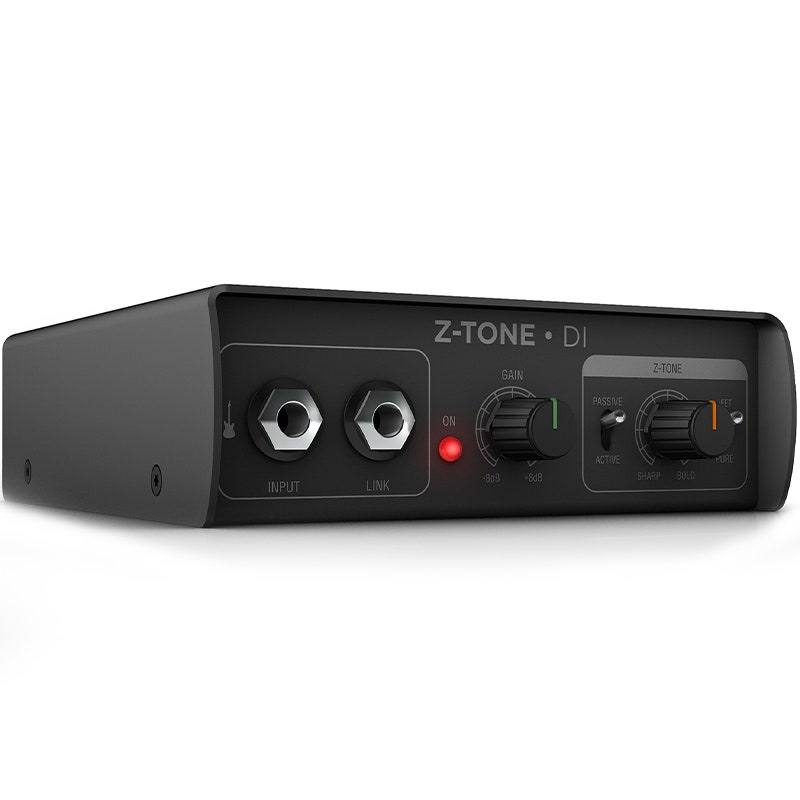

Want to track guitars the way the pros do, with a new level of sound quality and powerful workflow? Look no further than the groundbreaking Z-TONE® DI.
Z-TONE DI combines the award-winning sound shaping from IK’s AXE I/O interface with the flexibility to record both processed and DI guitar tracks at the same time, as well as best-in-class sound quality. It takes any audio interface (or live mixer) to the next level using the same techniques in the studio as pros like Joe Satriani.
Key Features
- Active/Passive pickup selector
- PURE channel for transparent sound
- JFET channel adds warmth & harmonics
- Z-TONE variable impedance control creates a wide range of tones
- 20 dB pad for extended operating range
- Balanced & unbalanced outputs
- Link out splits signal to amps & pedals
- Ground lift switch eliminates buzz & hum
- Rugged, stage-ready metal housing
- Designed and made in Italy
Audio specs
- I/O Gain: Unitary, from 1/4” input JACK to both 1/4” and XLR outputs when GAIN is at 0dB and Z-TONE at the SHARP position.
- Gain Range: From -8dB to +8dB
- Input impedance - Z-TONE set on PASSIVE mode: Variable from 1MΩ down to 2.2kΩ
- Input impedance - Z-TONE set on ACTIVE mode: Approx 20kΩ
- Output impedance, unbalanced out: 56Ω
- Output impedance, balanced out: 600Ω
- Max input level before clipping: +13dBm when powered by 48V phantom,+9dBm when powered by 9V battery
- PAD: -20dB
- Dynamic Range: better than 114dB(A) for both outputs, input gain at 0dB
- Total Harmonic Distortion, balanced output, 1kHz, +4dBm input: 0.0033% (PURE), 0.2% (JFET)
- Total Harmonic Distortion, unbalanced output, 1kHz, +4dBm input: 0.00055% (PURE), 0.2% (JFET)
- Frequency response: from 5Hz to 30kHz -1dB
- Phase deviation: 0° +/-10° from 20Hz to 20kHz
- Power: Phantom power: +48V phantom on Balanced output
- Battery power: 9V - not included
- Current consumption from P48 phantom power source: 6.5mA
- Dimensions: 13.7cm x 15.8cm x 4.5cm
- Weight: 950g
