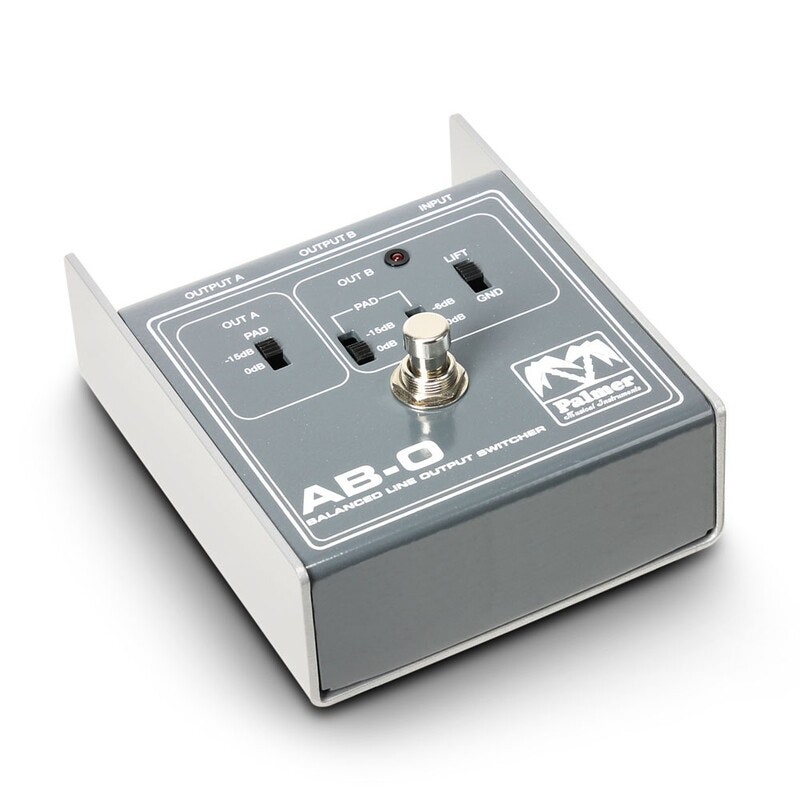

Palmer ABO

Palmer PEABO is a Balanced Line Output Switch with one input and two outputs. Thus, it is the perfect choice for routing a signal to either one of two possible inputs. Switch your vocal mic between the FOH and monitor mixing desk to communicate with the monitor mixer or the band on stage.
Two different sound configurations: to switch between different effects or sounds on your microphone, e.g. a "telephone effect" or more levels of reverb. Run the outputs of the PEABO into two channels of the mixing desk, that you can configure differently. Now you can freely toggle between them on-stage at any time. You can also use the PEABO to route the signal to two rooms or zones and select either one.

Product type: Switches
Switching function: output switcher
Channels: 2
Inputs: 1
Input connectors: XLR
Outputs: 2
Output connectors: XLR
Transformer isolated output: sno
Controls: Output pad
Indicators: channel number
Operating voltage: 9 V block
Current drawn: .a.
Cabinet material: sheet steel
Cabinet surface: Powder coated
Width: 100 mm
Depth: 120 mm
Height: 60 mm
Weight: 0,64 kg
