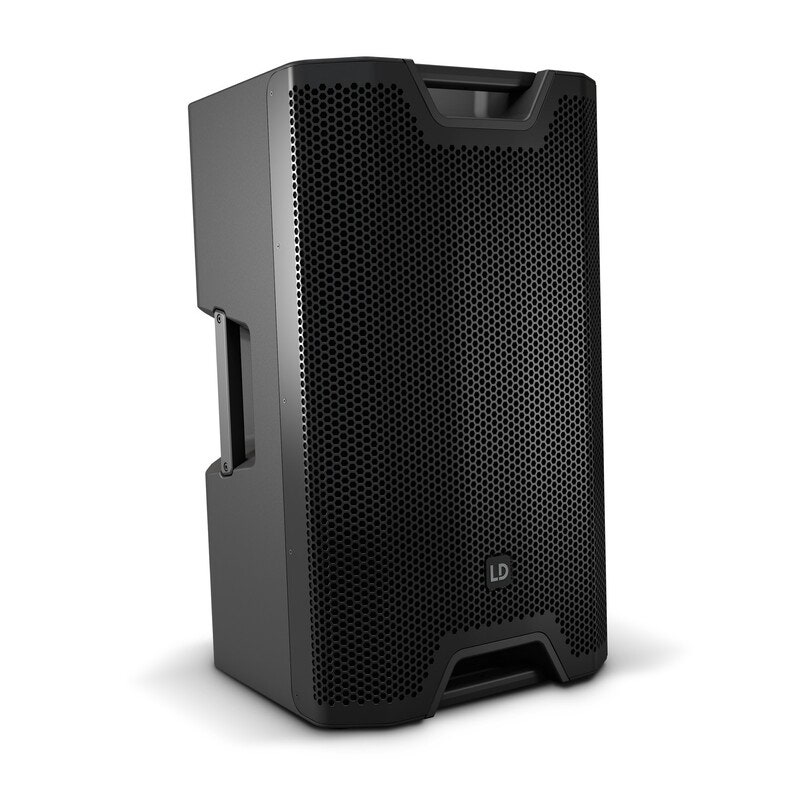

LD Systems ICOA 15

A genuine all-rounder for full-range, satellite and monitor applications as well as fixed installations

Passive loudspeaker with 125 dB max. SPL and 1000 W peak power

Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending)

Horn-loaded woofer

36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand

6 x M10 flying points

Shock-resistant front grille for optimal speaker protection

Four aluminium grips with ergonomic, rubber surface

Extensive range of optionally available accessories for installation and transport





This 15" full-range loudspeaker stands out with impressive sound even at low frequencies. As a jack-of-all-trades, the unpowered ICOA 15 speaker by LD Systems and its design with a coaxial design and rotating, BEM-optimised CD horn means it is extremely flexible.



The horn-loaded woofer's outstanding bass reproduction makes the ICOA 15 the ideal choice for dance schools, musicians, bands and entertainers. It also allows DJs to play sets without the need for a subwoofer. The speaker also makes a good impression in fixed installations due to its freedom of flexibility.



Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. It Delivers a maximum sound pressure level of 125 dB peak and has 1000 Watt peak performance.



Thanks to its shock-resistant front grille and ideal 55° tilt angle make the ICOA 15 outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.

Extensive and smart accessories for installation and transport are optionally available. Four aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.



Specifications:

Product type: PA loudspeaker

Type: Passive

Low/mid driver dimensions: 15 "

Woofer size: 381 mm

Woofer magnet: Ferrite

Woofer brand: Custom-made

Horn: BEM optimized CD Horn

HF driver dimensions: 1 "

HF Driver Size: 25.4 mm

HF driver magnet: Ferrite

HF driver brand: Custom-made

HF driver voice coil: 1 "

HF Driver Voice Coil: 25.4 mm

Dispersion (H x V): 90 ° x 50

Load rating (RMS): 250 W

Peak power: 1000 W

Frequency response: 48 - 20000 Hz

Crossover frequency: 2000 Hz

SPL (1W/1m): 95 dB

Max. SPL: 125 dB

Impedance: 8 Ohm(s)

Loudspeaker inputs: 1

Speaker input connections: Speakon compatible

Loudspeaker outputs: 1

Speaker output connections: Speakon compatible

Cabinet material: Polypropylene

Cabinet construction: Bass Reflex

Mounting: 36mm flange (0°, 5°) , 6 x M10 flying points

Monitor angle: 55 °

Width: 416 mm

Height: 695 mm

Depth: 415 mm

Weight: 24,7 kg
