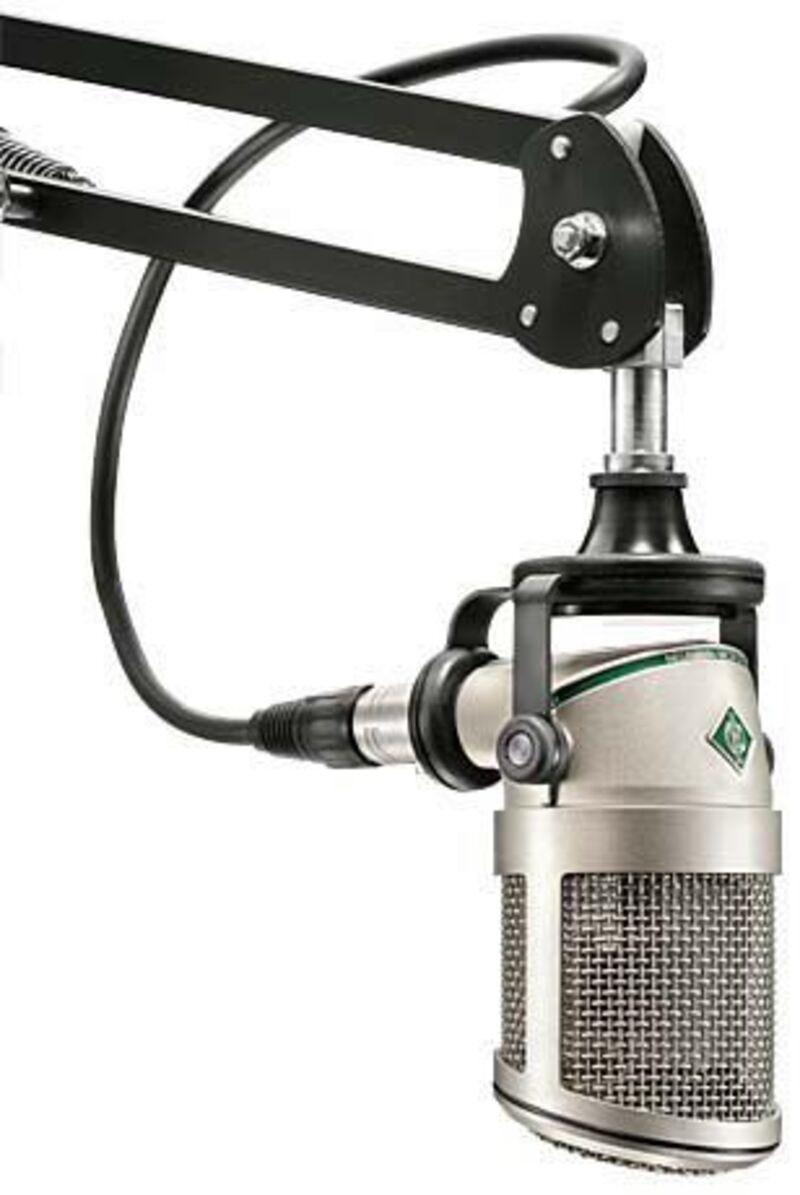

Neumann BCM705
Artikelnummer 1014759The first Neumann microphone with a dynamic capsule. Functionally optimized design specifically for the broadcast field, featuring integrated pop protection, suppression of structure-borne noise and a hypercardioid directional characteristic.
Tekniska Specifikationer:
Acoustical operating principle Pressure gradient transducer
Directional pattern Hypercardioid
Frequency range 20 Hz ... 20 kHz
Sensitivity at 1 kHz into 10 kohm 1.7 mV/Pa
Rated impedance 200 ohms
Rated load impedance 10 kohms
Equivalent noise level, CCIR1) 32 dB
Equivalent noise level, A-weighted1) 18 dB-A
Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL) 62 dB
Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL) 76 dB
Weight 500 g
Diameter 64 mm
Length 85 mm
Height (without suspension) 110 mm
