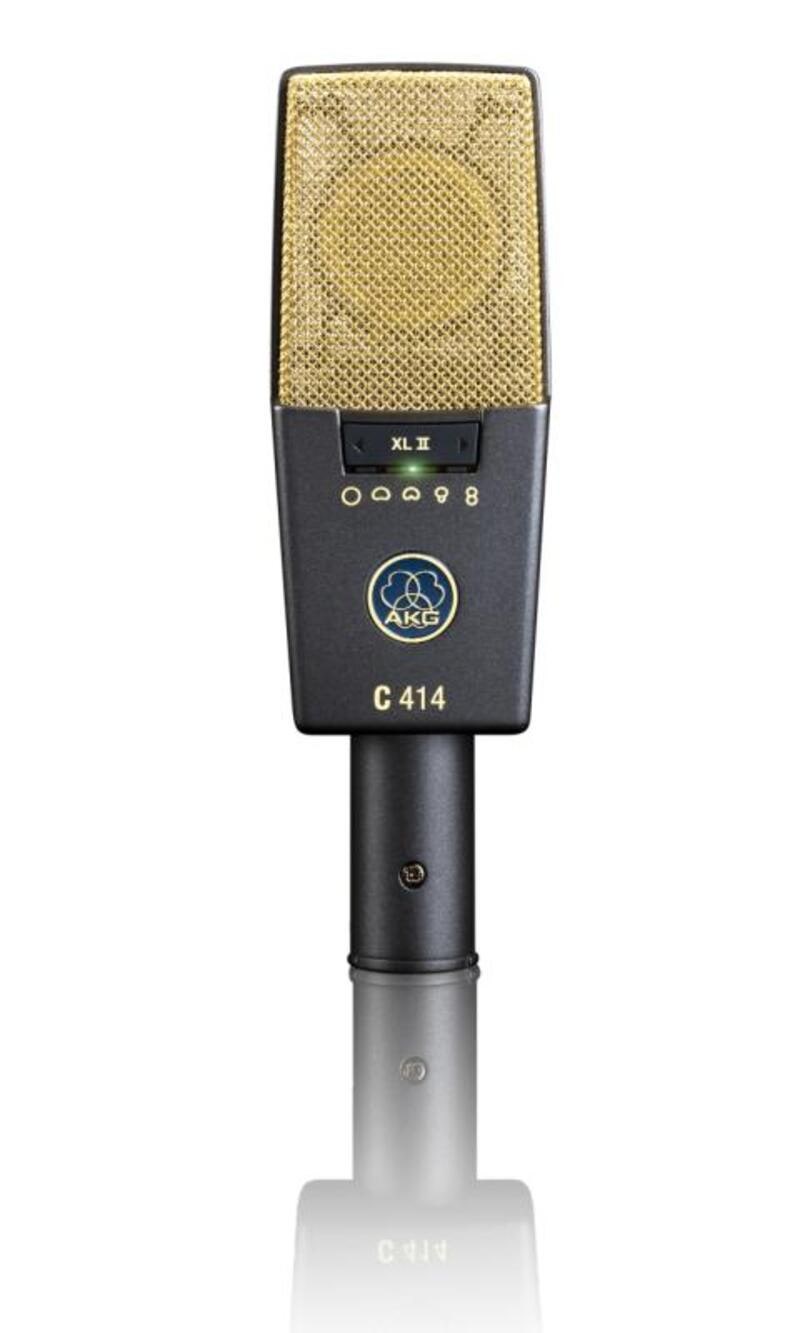

AKG C414-XLII

AKG C 414 - A legend since 1971

Nine selectable pickup patterns enables to choose the perfect setting for every application

Lock Mode: all controls can be disabled easily for trouble-free use

Peak Hold LED even detects shortest overload peaks

Incredible Dynamic Range of 152 dB

Three switchable different bass cut filters and three pre-attenuation levels

Leading-edge technology and state-of-the-art components ensure shortest signal path and extra protection against moisture

Designed, Engineered and Built in Vienna, Austria

• Polar Pattern: Omnidirectional, wide cardioid, cardioid, hypercardioid, figure eight and 4 intermediate settings
• Frequency Range: 20 to 20 000 Hz
• Sensitivity: 20 mV/Pa (-34 dBV) ± 0.5 dB
• Max. SPL: 200/400/800/1600 Pa = 140/146/152/158 dB (0/-6/-12/-18 dB) for 0.5% THD
• Equivalent noise level (IEC 60268-4, A-weighted): 6 dB-A (0 dB preattenuation)(IEC 60268-4)
• Signal/Noise Ratio: 88 dB
• Preattenuation pad: 0 dB, -6 dB, -12 dB, -18 dB, switchable
• Bass cut filter slope: 12 dB/octave at 40 Hz and 80 Hz; 6 dB/octave at 160 Hz
• Impedance: <= 200 ohms
• Recommended load: >= 2200 ohms
• Supply voltage: 48 V phantom power to DIN/IEC
• Powering: Approximately 4 mA
• Connector: 3-pin XLR to IEC
