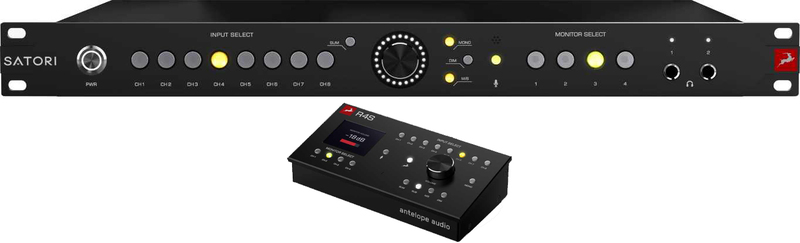

Antelope Satori & R4s Gen2
Artikelnummer 1089202Precise Monitoring Controller & Remote
The second generation of Satori, an improved version of the TEC Award-winning monitoring controller. Maintaining its legacy of digitally controlled true analog monitoring and summing, the new Satori Gen 2 brings further advancements, making it an even more essential tool for modern studios.
Functionality
• All analog circuit design (132 dB DnR; -127 dB THD+N) with digital control
• Precise 0.25 dB stepped volume control
• Flexible talkback options – 1x talkback input, and built-in mics in R4S and Satori
• Talkback assignable to every headphone output
• Built-in analog summing mixer, with 4 stereo channels and independent input volume controls
• 11 Switchable mono and stereo monitoring modes
• R4S remote controller with LCD display included
• User-friendly desktop app for remote control over USB, for Windows & macOS
Connectivity
Analog Inputs
• 4 x Stereo Pair Line Level Inputs (Ch1 on XLR & Ch2-4 on TRS)
• 4 x Stereo Line Level Inputs on D-Sub 25
• 1 x Talkback Mic Preamp on TRS
Additional Connectivity
• USB 2.0 Hi-Speed Type B for software remote control panel and firmware updates
Analog Outputs
• 4 x Stereo Line Level Outputs on D-Sub 25
• 4 x Stereo Pair Monitor Outputs (Mon1 on XLR, Mon2-4 on TRS)
• 1 x Line Level Stereo Sum Output on TRS
• 1 x LFE Output on TRS
• 4 x Headphone Outputs (two on the rear, two on the front) on TRS
R4S Connectivity
• USB 2.0 Type-C for remote control and firmware updates
In-the-Box Content
• Satori Gen 2 High-End Monitoring Controller
• R4S hardware remote control
• 1 x USB type A to type B cable
• 1 x USB type C cable
• 1 x USB type C to type A adapter
• 1 x AC Power Cable
• Get started guide
Dimensions
Satori & R4S
• Weight Satori: 2kg / 4.4lb approx.
• Dimensions Satori: W: 483 mm (19” rack), H: 44 mm (1.73” -1U), D: 220 mm (8.66”)
• Weight R4S: 0.71kg/1.57lb approx.
• Dimensions R4S: W 220mm (8.66”) , D 85mm (3.31”) , H 55mm (2.22”)
Box
• W: 635 mm (25)”
• H: 145 mm (5.71”)
• D: 340 mm (13.39”)
• Gross Weight: 5.3 kg (11.68 lbs)
