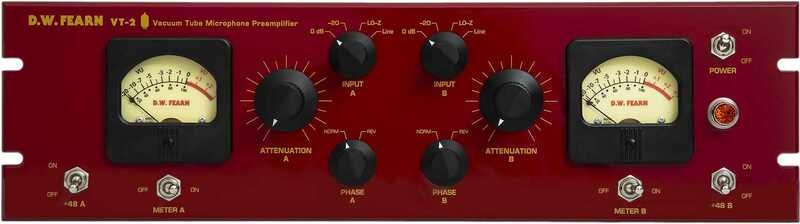

D.W. Fearn VT-2

All vacuum-tube design

Lo-Z input position for superior performance with transformerless microphones

Phase (polarity) reverse switch

+48 volt phantom power (completely disconnected when off)

Integrated, switchable 43 dB pad for Line Level processing

Custom-design Jensen input and output transformers

20 dB input pad (switchable)

True VU meters (amplifier isolated)

All point-to-point audio wiring

Gold input and output XLR connectors

Polypropylene and polystyrene coupling capacitors

All audio switching through gold-contact, sealed precision relays

International operation on 100, 120, or 220 VAC, 50/60 Hz

CE certified, RoHS-compliant

+4 dBm output

Conservatively rated precision components and rugged construction for stability and long life

Input 150 ohms

Input Load Impedance 1.5k ohms

Minimum Input Level -65 dBm nominal

Maximum Input Level @ 20 cps -30 dBm without pad, -5 dBm with 20 dB pad

Gain 53 dB

Frequency Response +/-0.25 dB 20 cps to 20 kc; -3 dB @ 0.5 cps and 55 kc

THD+Noise less than 0.25% 20 cps to 20 kc

Intermodulation Distortion SMPTE less than 0.02%

Signal to Noise Ratio 74 dB minimum

Equivalent Input Noise -124 dBm maximum

Output low-Z, transformer-balanced

Maximum Output Level +22 dBm, 20k ohm load

Power Requirements 100, 120, or 220 VAC, 50/60 Hz

Dimensions 19” (48.26cm) W, 5.25” (13.34cm) H, 14” (35.56cm) D
