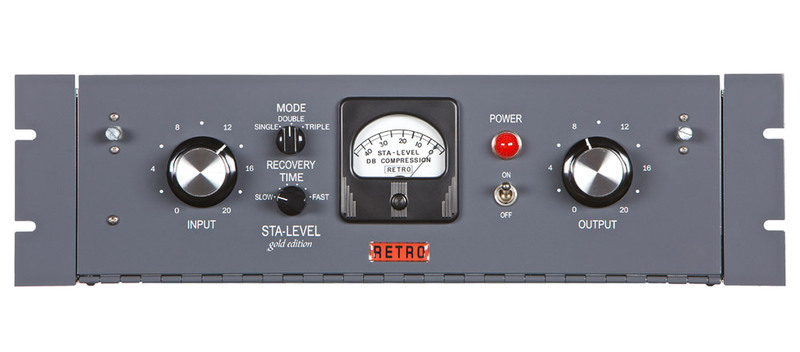

Retro Instruments STA-Level
Artikelnummer 1014548The Retro Sta-Level is a recreation of the legendary 1956 Gates Sta-Level. The Sta-Level dominated the sound of hit radio in the 1960’s. Now these super musical sounding compressors have found their way into today’s hits.
Produkten har utgått
43995 kr/st
Specifications
- Gain Reduction Threshold: Continuously adjustable from +24dBm to -20dBm
- Available Gain Reduction: 40dB
- Total System Gain: 35dB (with standard input and output pads)
- Distortion: 1 percent or less from 0-30 dB gain reduction
- Frequency Response: ± .25dB from 20-20,000 Hz
- Noise: -70dB or better referenced to gain reduction threshold
- Output Level: Continuously adjustable from -40 dBm to +18 dBm
- Input Impedance: Accepts low impedance active or transformer balanced 0-600 Ohms
- Output Impedance: 600 Ohm transformer balanced, terminated and resistive pad coupled
- Tube Complement: 2-6BA6, 1-12AT7, 2-6V6GT, 1-6AL5, 1-OB2, 1-5Y3GT
- Power Requirements: Three prong IEC - Switchable 115-230 VAC - 50/60 Hz
- Mounting Requirements: 3U metal rack 5.25" high, 19" wide, 8" deep
