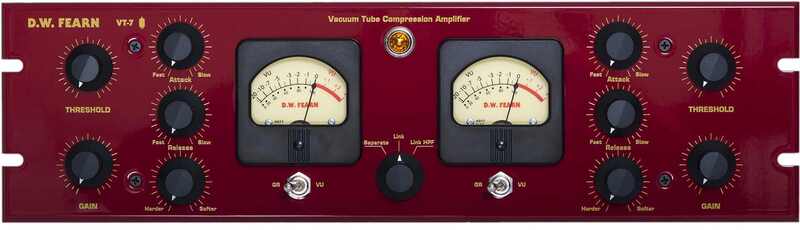

D.W. Fearn VT-7

Selectable Stereo/Dual Mono operation

High Pass Filter on switchable Sidechain

Threshold

Gain

Attack

Release

Harder/Softer

Input 600 ohm source (nominal) balanced or unbalanced

Input Load Impedance 32k ohms, transformer balanced bridging

Nominal Input Level +4 dBm

Maximum Input Level @ 20 cps +25 dBm

Gain unity to +15dB

Frequency Response ± 0.2 dB 20 cps to 20 kc ± 0.5 dB 11 cps to 28 kc -3 dB @ 0.5 cps & 65 kc

THD + Noise <0.05% 20 cps to 20 kc

Signal to Noise Ratio 78 dB minimum

Output low-Z, transformer balanced

Output source impedance 115 ohms

Maximum Output Level +22 dBm into bridging input balanced or unbalanced

Gain Reduction Range 0 to 20dB

Power Requirements 120 or 220 VAC 50/60Hz, 85 W

Dimensions 19” (48.26cm) W 5.25” (13.34cm) H 13” (22.9cm) D

Weight 22 lbs (9.55 kg)
