Overstayer 8776A Imperial Channel

The Overstayer Imperial Channel Model 8776A is a self-contained channel strip modules with patching points for flexible routing. They are self-powered and can be used independently or as part of a larger recording and mixing system.

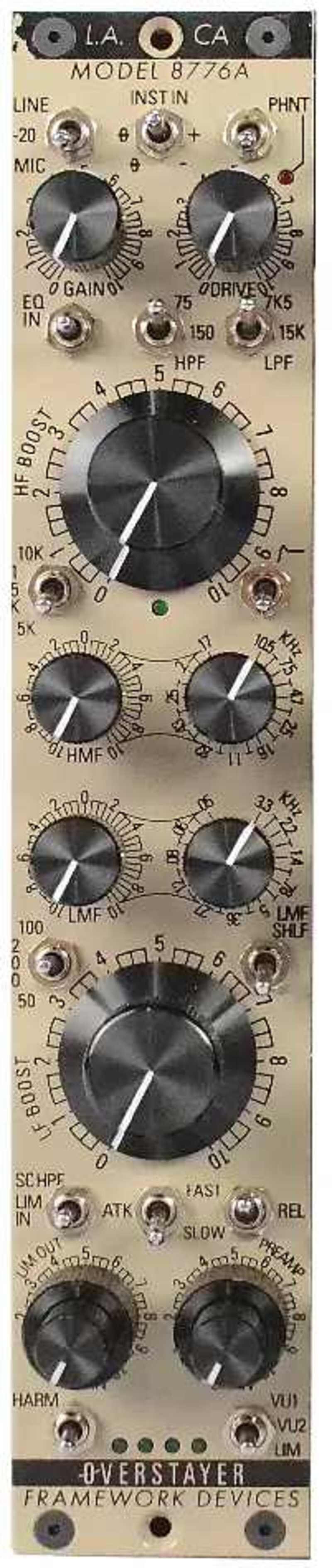

The Overstayer Imperial Channel Model 8776A combines a mic/Line/Instrument inputs with resonant filters, 4-band EQ, FET Limiting and Harmonics control in slim 5RU vertical module.

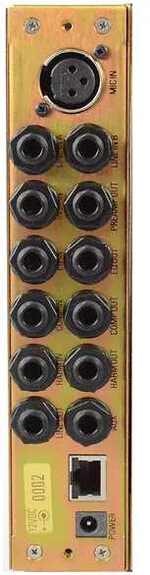

An extensive array of connectors are provided at the back to create your ideal chain and include inputs and outputs for the Preamp, EQ, Limiter and Harmonics. Multiple output points are also provided to let you record multiple signals simultaneously. An Aux Jack allows for external signals to be mixed in from another point in the unit or externally via guitar pedals for example.

Overstayer Imperial Channel Model 8776A Main Features:

• Microphone, Line and instrument inputs
• Transformer coupled input and output
• Multiple discrete gain stages
• high- and low-pass filters
• 4-band equalizers with high and low shelving bands and two medium parametric EQ
• FET Limiting Amplifier with sidechain filter
• MAS Harmonic
• Preamp and channel output faders for parallel processing
• Polarity and phantom power
• 4 segment level and gain reduction metering
