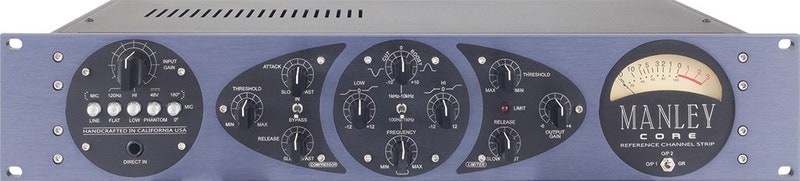

Manley Core Channelstrip
Artikelnummer 1043210An innovative channel strip that combines Manley’s Greatest Hits with fresh technology.
Ej i lager, kontakta oss för leveranstid
Betala direkt, med faktura eller delbetalning - Spara kort och bankkonto - Smidigt och säkert - Klarna köparskydd
30190 kr/st
SPECIFICATIONS
- ALL-TUBE preamplifier audio path using 1 x 12AX7 for gain and 1 x 6922 White Follower
- Balanced Transformer Coupled XLR Microphone Input Impedance: 1200 Ohms
- Balanced XLR Line Input Impedance: 10 kOhms
- Unbalanced 1/4" Direct Input Impedance: 10 Meg Ohm
- Hi-current drive Direct XLR output Impedance: 50 Ohms
- Silent conductive plastic INPUT attenuator
- Microphone preamp high pass filter starting at 120Hz with a 6dB/8va slope
- Compressor Maximum GAIN REDUCTION: 16 dB
- Compressor ATTACK time: 60ms slowest CCW, 30ms at 12:00, 5ms fastest CW for 6dB compression
- Compressor RELEASE time: 1.5s slowest CCW, 1s at 12:00, 100ms fastest CW from 6dB compression
