WesAudio Calypso

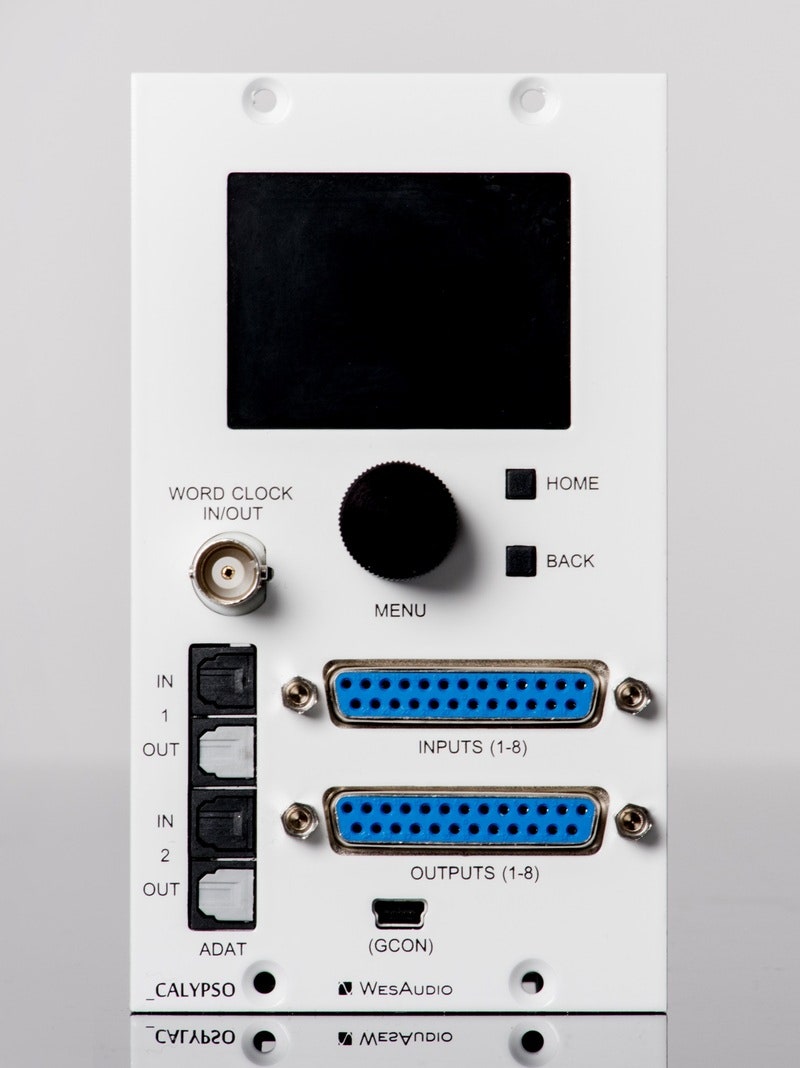

CALYPSO is an audio interface designed to work in 500 series enclosure. It features state of art 8 channels of AD/DA conversion and perfectly integrates with ng500 chassis – _TITAN, through I.A.C. connector. Besides its very convenient integration with ng500 chassis, it still can be used in standard 500 series enclosure using two DB25 connectors.

Features summary:

• 24bit conversion
• Supported sample rates: 44.1kHz, 48kHz, 88.2kHz(SMUX), 96kHz(SMUX)
• Ultra low jitter clock
• Word clock IN/OUT
• Full integration with _TITAN via IAC connector (Just ADAT cables are need to route all signal to and from chassis)
• Two DB25 connectors allows integration with any 500 series chassis
• Two converter reference levels +8dBu/-10dBV
• LCD screen with channel metering

Specification:

Power consumption: 150mA per rail
Dimensions : 76x133x158mm
Warranty: 2 years

Inputs(ADC):
Freq. response – 20Hz-20kHzm +/- 0.1dB
THD+N (unweighted): -108dB (0.0004%)
Dynamic range (unweighted): 116dB
Gain Settings: +4 dBu / –10 dBV (selectable per input)
Maximum Input Level: (+4 dBu) +20 dBu
Input Impedance: 10K Ohms
Connector type: DB25/IAC

Outputs(DAC):
Freq. response – 20Hz-20kHzm +/- 0.1dB
THD+N (unweighted): -105dB (0.0005%)
Dynamic range (unweighted): 115dB
Gain Settings: +4 dBu / –10 dBV (selectable per output)
Maximum Output level: (+4 dBu) +20dBu
Output Impedance: 100 Ohms
Connector type: DB25/IAC
