EmpiricalLabs DocDerr

Artikelnummer 1082693

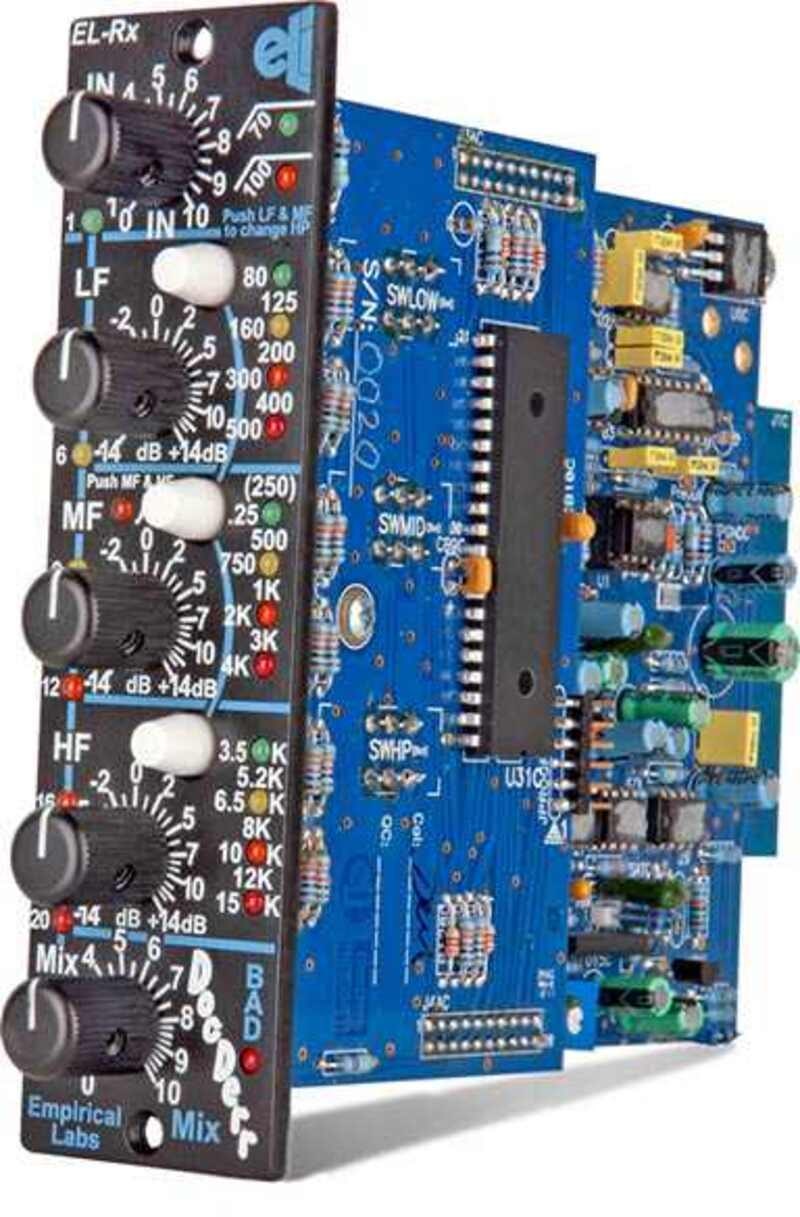

500 Series Multi-Purpose Tone Module

Ej i lager, kontakta oss för leveranstid

Betala direkt, med faktura eller delbetalning - Spara kort och bankkonto - Smidigt och säkert - Klarna köparskydd

13500 kr/st

Frequency Response – 3 Hz to 180 kHz on eq section (-3dB points).
Dynamic Range – 120 dB from maximum output (.5%THD soft clipping) to minimum output. Noise floor with Mix on 0 is typically – 91dBu.
Distortion – between .0006% and 10% at 1KHz, depending on mode and settings.
I/O – Maximum Input before hard clipping – +22dBm, “ Line In” mode. Maximum Output (Mix at 0) – +28.5dBm
Impedance – 120k Ohm, Instrument In Mode, output impedance is less than 75 ohms. 20K input impedance in balanced Line in mode.
Compressor Time Constants – Attack time is around 1mS. Release .2 sec, fixed internally. Stereo Linkable for stereo tracks. With the EL500 powered rack, the push of a button enables linking.
