500-Series

API 560

Artikelnummer 1016184

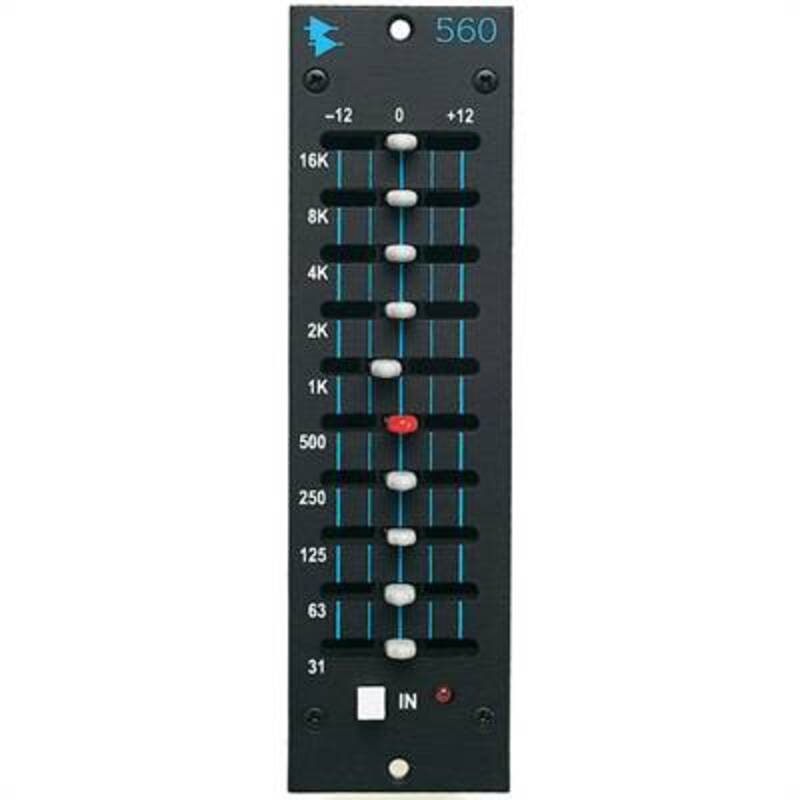

500-Series Discrete 10 Band Graphic EQ

Ej i lager, kontakta oss för leveranstid

Betala direkt, med faktura eller delbetalning - Spara kort och bankkonto - Smidigt och säkert - Klarna köparskydd

12547 kr/st

Köp

Features

10 bands of API proprietary equalization
Familiar graphics operation on one octave centers
12 dB of boost/cut per band
"Proportional Q" narrows filter Q at extremes
Additional resolution within the ±4 region
Center detent for reliable reset
Traditional API fully discrete circuit design
Silent bypass button
Re-issue of the 1969 API 560 EQ

Originally conceived for use in API Consoles of the 60's and 70's, the API 560 re-issue is a unique device designed to accomplish tasks that no other EQ can do. It delivers that "one-of-a-kind" API sound, precision easy set filtering, and high headroom in a very small package. Extremely fast to set and reset using accurate zero detents, the curve shaping potential of the 560 is unmatched. At home both in field recording and the studio environment, this "new-old" version is a re-issue of the original 560 with improved resolution in the critical area of ±4 dB. Incorporating API's exclusive circuitry and proprietary components (such as the legendary 2520 op-amp), the re-issue of the 560 artfully blends the past with present—layout with function.
