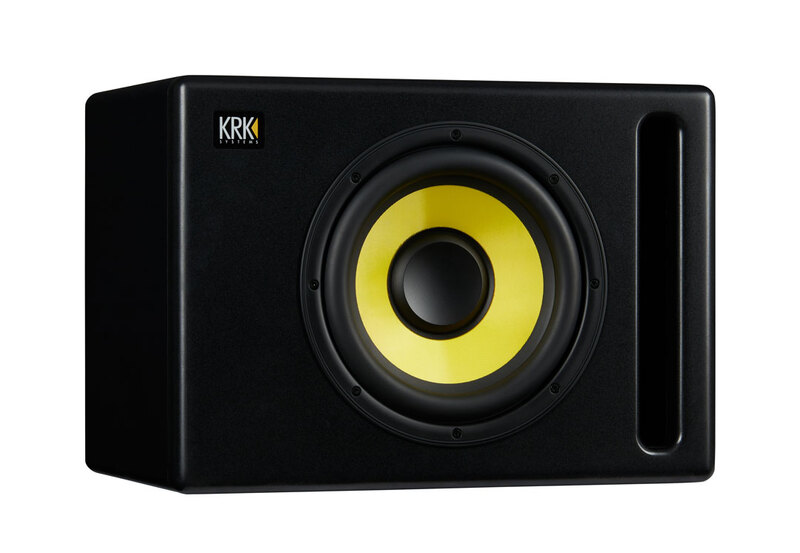

KRK S10.4 Powered Subwoofer
Artikelnummer 1068207160watt active subwoofer featuring 10" glass aramid composite woofer
The S10.4 powered studio subwoofer builds upon KRK’s legacy for sonic accuracy and performance. The custom-voiced, glass-aramid woofer delivers tight, defined bass, while the Class-D power amplifier dramatically increases transient response, control and punch. The four-position selectable crossover makes it easy to adjust the subwoofer setting to your existing monitors.
Pairing the S10.4 with KRK or another studio monitors delivers an optimized listening and mixing experience with extended low end, while the exclusive bypass-control feature provides full range audio to the monitors without switching off the subwoofer. KRK's S10.4 subwoofer doesn’t just deliver precise bass and a rich feature set: it’s the next dimension in subwoofer performance.
S10.4 Features
- 10" glass aramid composite woofer
- Bass extension to 28Hz with a max SPL of 117 dB
- Footswitch control enables/disables sub and crossover filter (footswitch not included)
- Curved design with front-firing bass port for placement flexibility
- Powerful, lightweight Class D amplification
- Optimized four-position crossover control
- Universal connectivity: XLR, 1/4" TRS, and RCA inputs and outputs
- Polarity and input sensitivity controls
- 15 mm and 18 mm reinforced MDF enclosure provide maximum strength and protection
- Ground lift switch prevents ground loops
|
Configuration |
|
Front Loaded, Vented Subwoofer |
|
System Type |
|
Active Subwoofer |
|
Low-Frequency |
|
10" Glass Aramid Composite Woofer |
|
Frequency Response |
|
34Hz - 130Hz |
|
Max Peak SPL |
|
117.2 dB |
|
Amplifier |
|
Class D |
|
Power Output (Continous) |
|
160 Watts @ 1% THD+N @ 44Hz |
|
Signal to Noise Ratio |
|
92 dB |
|
Amplifier Distortion (THD + N) |
|
≤ 0.12% @-3dB Of Max Power Output 31Hz-110Hz |
|
Input Impedance |
|
9.4 KΩ Balanced, 9.2 KΩ Unbalanced |
|
Ground Lift |
|
On/Off |
|
Low Pass Frequency |
|
28Hz-156Hz |
|
HPF Bypass |
|
With Footswitch Only |
|
Footswitch |
|
Optional |
|
Phase |
|
0 or 180 Degrees |
|
System Volume |
|
-30 dB to +6 dB |
|
Indicators |
|
Power/Standby, Sub On/Mute, HPF Bypass |
|
Input Connectors |
|
XLR L/R, 1/4" TRS L/R, RCA L/R, 1/4" Footswitch |
|
LFE Input |
|
N/A |
|
Output Connectors |
|
XLR L/R, 1/4" TRS L/R, RCA L/R |
|
AC Power Input |
|
100VAC-240VAC |
|
Enclosure |
|
15mm Reinforced MDF |
|
Finish |
|
Black Vinyl Wrap |
|
Hardware |
|
EVA Isolation Pad |
|
Dimensions (H x W x D) |
|
15" (382mm) X 14" (355mm) X 16.06" (408mm) |
|
Weight |
|
34.5 lb. (15.6 kg) |
