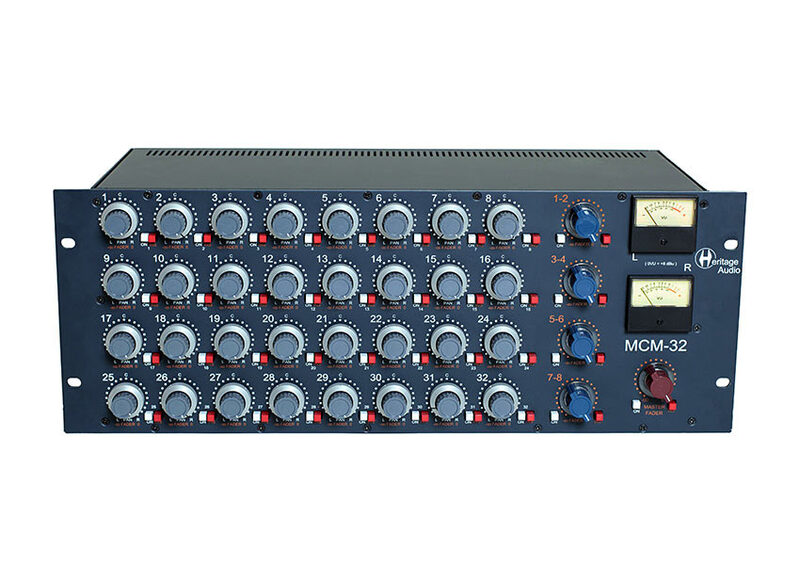

Heritage Audio MCM-32
Artikelnummer 107507332 Channel Summing mixer with 8 subgroups and inserts
Ej i lager, kontakta oss för leveranstid
Betala direkt, med faktura eller delbetalning - Spara kort och bankkonto - Smidigt och säkert - Klarna köparskydd
45708 kr/st
Comprising vintage quality sound with sophisticated routing options, they are the perfect partner for hybrid setups, integrating analog gear with your DAW.
The MCM-32 employs a unique configuration, offering 32 input channels arranged into 4 subgroups of 8. Each channel features center detent Pan and Fader concentric controls plus balanced insert and mute switches.
- Channel Input Impedance: Greater than 20 Kohm.
- Maximum channel input level: Greater than +26dBu
- Maximum insert return input level: Greater than +26dBu
- Maximum insert send level: Greater than +27dBu, able to drive 600 ohm.
- Maximum output level: Greater than +26dBu into 600ohm.
- Frequency response: ±0.5dB 20Hz to 20kHz
- THD + N: Not more than 0.07% from 50 Hz to 10 kHz at +20dBu output (22 Hz to 22 Khz bandwidth) into 600Ω.
- Noise, all faders up, all subgroups in, measured at the main output, 22Hz to 22Khz: Better than -80dBu
