RME Fireface UCX II
Artikelnummer 1071587USB 2.0 Interface 8 analoga in/ut 2 mikrofonpreamps, MIDI, ADAT, AES/EBU, SPDIF, Wordclock, DC-kopplade utgångar, Class Compliant, TotalMix FX, SteadyClock FS, DURec

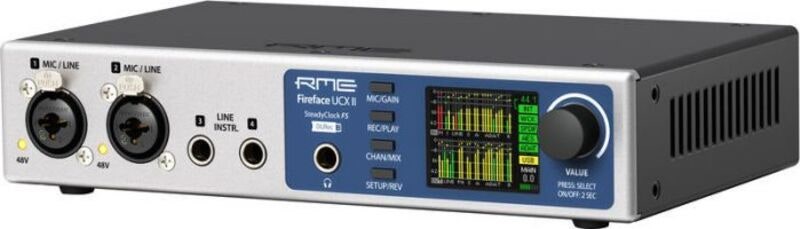

This unique audio system is capable of transferring analog and digital audio data directly to Windows and Mac computers. The latest Plug and Play technology guarantees a simple installation, even for the inexperienced user. Numerous unique features like a well thought-out Settings dialog and an integrated routing solution realize a quick, comfortable and efficient operation of the Fireface UCX II. The Fireface UCX II houses two mic/line preamps in XLR combo configuration on the front panel, along with two digitally controlled line/instrument inputs, followed by a headphone jack, various control buttons, a display, and the main volume knob. At the rear is a set of ten analogue balanced line inputs and outputs, MIDI I/O, ADAT I/O, AES/EBU and SPDIF I/O, USB 2.0 as well as a switchable word clock I/O. With the SteadyClock FS, the Fireface UCX II features the latest clock and jitter rejection technology from RME. Based on a femtosecond clock, SteadyClock FS reduces the intrinsic jitter when converting from and to analogue over all digital formats to a new all-time low.
- USB 2. 0 audio interface
- 24-bit / 192 kHz AD/DA converter
- 20 input and output channels
- SteadyClock FS; stand-alone functionality
- DURec feature: Integrated digital recorder for all inputs and outputs directly to USB storage devices via rear USB port (allows recording to USB sticks or hard drives with up to 2 TB capacity)
- TotalMix mixing / routing software; DigiCheck software
- Class Compliant; Compatible with optional ARC USB remote control (not included)
- DC-coupled outputs - CV/Gate voltage control
- +48V phantom power
- Colour display
- Connectors
- 2x Mic/Line combo input XLR/jack 6.3 mm, 2x instrument/line input 6.3 mm jack, 4x line input 6.3 mm jack, Stereo Headphone out 6.3 mm jack, ADAT input and output, word clock input and output, AES/EBU + S/PDIF coax, MIDI input and output
