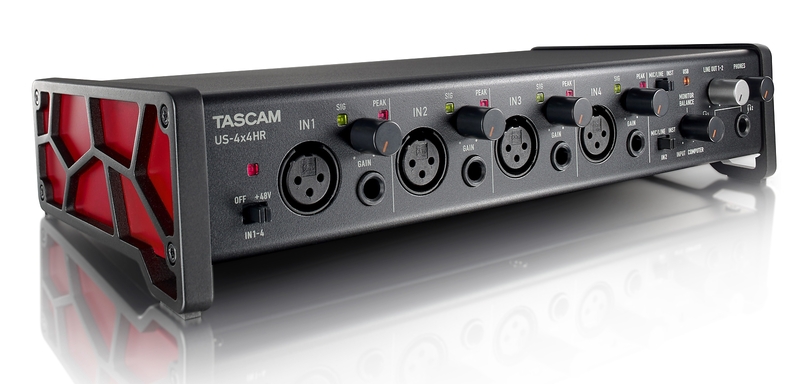

Tascam US-4x4HR

Features at a glance


• Advanced version of our popular US-4x4 with even better sound quality

• Provides four audio inputs and four audio outputs as well as a MIDI interface to a Windows or Mac computer or iOS device

• Audio resolution up to 192 kHz / 24 bit

• USB Audio Compliance 2.0 for iOS connection

Hardware features

• Four analogue mic/line inputs on individual XLR and TRS balanced connectors

• High-quality Ultra-HDDA (High Definition Discrete Architecture) microphone pre-amps with ultra-low noise (EIN: –128 dBu)

• Wide input gain range of 56 dB, ideal for dynamic microphones

• Switchable 48-Volt phantom power on XLR inputs

• TRS inputs 1/2 can each be switched to instrument-level for direct recording of guitar or bass

• Four line outputs (balanced TRS)

• Direct monitor option for low-latency monitoring

• Monitor mix control for adjusting the level balance between signals from external devices and signals from the computer

• Two headphones outputs delivering 45 mW per channel

• Independent level controls for line and phones outputs

• MIDI input/output

• Standalone operation as a simple preamplifier for practice sessions and more

• Rugged aluminum body

• Angled industrial design for ease-of-use on a desktop

Software features

• In-house developed driver for Windows devices ensures stable operation with low latency

• The buffer size for Windows can be selcted up from 4 samples to facilitate a recording environment with ultra-low latency

• Each input can be switched on/off individually

• Input monitor mode can be selected between stereo and mono

• You can select which signals are output at the line outputs

• A loopback function allows two audio channels from the computer to be merged with the input signals and send this mix to the streaming or communication software

  • Input and computer signals can each be selected between stereo and mono

  • A slider lets you adjust the broadcast level

• Switchable auto power save mode to reduce battery consumption on the laptop/tablet computer in mobile use

• Automatic update function available for software, driver and firmware updates (you can install new updates with the press of a button)

• Bundled with Cubase LE and Cubasis LE3, IK Multimedia SampleTank 4 SE and Antares Auto-Tune Unlimited (free 3-month subscription)

• Compatible with major DAW software
