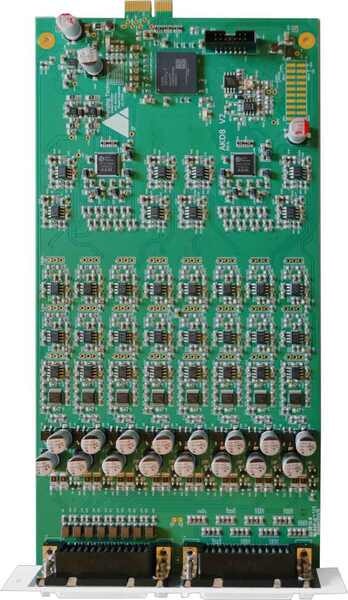

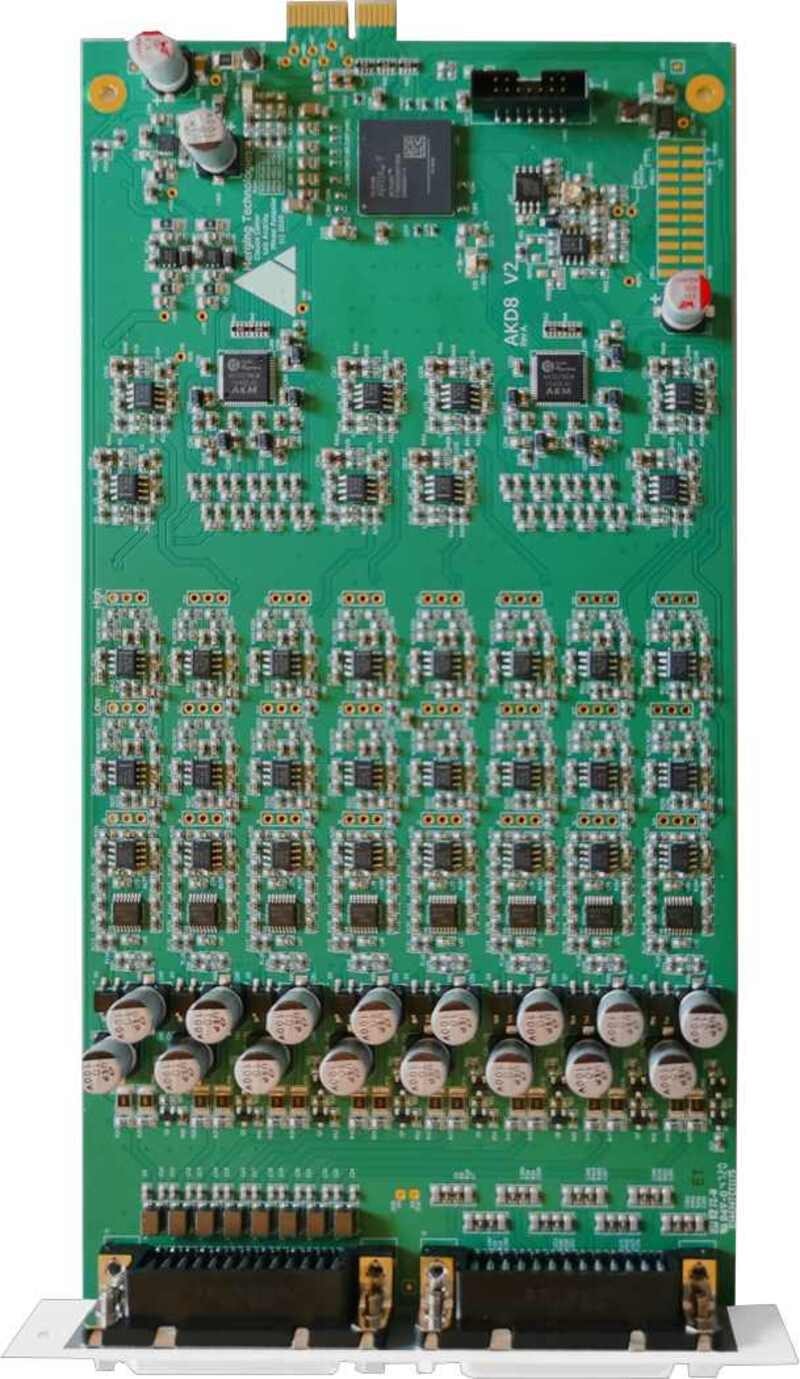

Merging Technologies AKDG8DP
Artikelnummer 10855418 Channel Mic/Line A/D Card for Hapi/Horus - Premium Version
The AKDG8DP input card is an outstanding addition to Merging Hapi, Hapi Mk II, and Horus audio mainframes.
With 8 mic/line inputs, it delivers unparalleled audio quality and a dynamic range of an impressive 136 dB (A).
The Swiss-designed preamps offer up to 78 dB of gain with exceptional transparency, thanks to Merging’s unique 3rd generation dual gain topology design. Its remote accessibility allows you to easily adjust all parameters for each channel. The AKDG8DS sets a new standard in audio circuit design, and it even includes analog direct outs (post-mic-pre) for monitoring or external processing.
The Premium card AKDG8DP supports sampling frequencies up to 352.8 kHz (DXD) and 384 kHz as well as bitstream formats up to DSD256
Features:
- 8 exceptionally transparent, Swiss-designed preamplifiers
- Remote/local switch to line level on a per-channel basis
- Full remote access for all parameter changes
- Phantom power/polarity invert/low cut/impedance switchable per channel
- Removes the need for DI-boxes
- Direct line out for each channel (post mic preamp)
- Dynamic range of 136 dB (A-weighted, typ)
- Auto-mute circuitry for “no-pop” power cycling
- Preamps MIDI remote control support
- 2x 25-pin Sub D connector
- Sampling frequencies up to 352.8 kHz (DXD) and 384 kHz as well as bitstream formats up to DSD256
