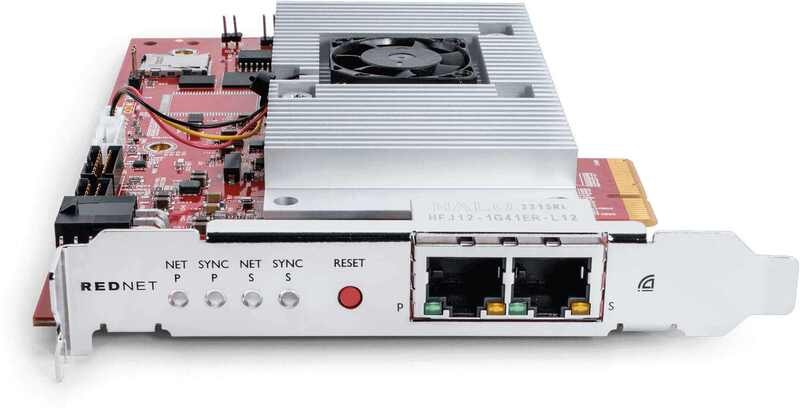

Focusrite RedNet PCIeNX Card

Designed for immersive formats like Dolby Atmos and all performance-critical high-channel-count Dante applications, RedNet PCIeNX delivers 128 x128 audio channels (up to 192kHz) out of the box, with ultra-low latency.

Features

• 128x128 channels (24-bit/192kHz) with ultra-low round-trip latency

• RedNet PCIeNX offers expandable connectivity with an optional upgrade to 256x256 audio channels (24bit/96kHz) with Dante Ready™.

• Perfect for large recording sessions and post-production work using Dolby Atmos and other immersive formats

• Dual Ethernet RJ-45 connections allow for both switched and redundant mode, offering flexible connectivity

• Supports the latest standards, including AES67 and compliance for SMPTE ST 2110 (DDM required)

• Compatible with Windows or Mac computers (Intel and Apple Silicon supported)

• Easily installed in a PCIe slot or Thunderbolt chassis

• Integrated network interface – allowing a single-cable connection for audio and network control

• Purchase with confidence. RedNet PCIeNX is backed by Focusrite’s 3-year warranty award-winning 24/7/365 technical support

Please note: attachments such as the Aux power connector, SD card slot and JTag connectors are not included with this product.
