SHURE GLXD16+
Artikelnummer 1081120Gitarrpedalsystem, enkel installation, smart laddning, 12h batteritid, 2,4 och 5,8 GHz
The Shure GLXD16+ is a wireless guitar pedal system. Go wireless without compromising your tone or complicating your rig.
Every aspect of the system is handled automatically and with total reliability, so you can focus on your own performance. With the new wireless dual-band technology, the GLX-D+ can operate in both 2.4 and 5.8 GHz and more than doubles the available bandwidth, while the system is intelligent enough to avoid interference and deliver reliable signal without drop-outs. The included rechargeable lithium-ion battery has up to 12 hours of run time (improved from the previous generation GLX-D), and can be charged in multiple ways with really fast charging capabilities. The system Available with several legendary microphone options (including the SM58) and with three different receiver options: table top, half rack and guitar pedal. In combination with frequency managers and antennas (sold separately), the rack-mount systems are ideal for small and medium-sized installations where a larger number of channels is needed.
- Exceptional, digital wireless sound: Always cut through the noise and captivate audiences with superior, transparent sound reproduction. GLX-D+ Dual Band intelligently avoids interference to give you total, reliable wireless freedom. Available in rack mount, table top and pedal receiver options with a wide selection of lavalier, headset and handheld microphone choices - including the legendary SM58.
- New dual-band wireless technology: Provides reliable and consistent signal by automatically scanning both the 2.4 and 5.8 GHz bands and selecting the cleanest channel. More than twice the bandwidth ensures that dropouts won't stop the show.
- Easy, worry-free installation and handling: Transmitter and receiver automatically mate making installation as easy as possible - Plug in and you're ready to go. Smart frequency management continuously monitors the spectrum and seamlessly moves to a clean channel if any interference appears. Go wireless without complication.
- Smart charging: No more worrying about the battery running out. GLX-D+ rechargeable lithium-ion battery, the SB904 delivers up to 12 hours of runtime and can be charged directly on the receiver or via the USB-C connector on the handheld microphone or bodypack. A quick charge function enables 1.5 hours of use in 15 minutes of charging.
- Super-solid RF performance for multi-system installations: The GLX-D+ Dual Band Wireless provides improved RF performance, antenna distribution and automatic frequency management for up to 11 half-rack systems in typical environments (16 under optimal conditions). Separately available frequency manager (GLXD+FM) is required.
- License-free frequency range: Allows you to travel without worrying about licenses, frequency coordination and other technical obstacles.
Manufacturer specifications
Compatibility: | With Frequency Manager: Up to 11 compatible systems in typical setting, and up to 16 under ideal conditions |
Without Frequency Manager: Up to 4 compatible systems in typical setting, and up | |
to 8 under ideal conditions | |
System Operating Range: | Indoors: Up to 30 m (100 ft.) typical, with a maximum of 60 m (200 ft.) under |
ideal conditions.Outdoors: Up to 20 m (65 ft.) typical, with a maximum of 50 m (165 ft.) under ideal conditions | |
Transmit Mode: | Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz) |
Audio Frequency Response: | 20 Hz – 20 kHz Note: Dependent on microphone type |
Dynamic Range: | 120 dB, A-weighted |
RF Sensitivity: | (-88) dBm, typical |
Total Harmonic Distortion: | 0.07%, typical |
RF Output Power: | 10 mW E.I.R.P. max |
Operating Temperature Range: | (-18°C) (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range.A17v |
Storage Temperature Range: | (-29°C) (-20°F) to 74°C (165°F) |
Polarity: | Positive pressure on microphone diaphragm (or positive voltage applied to tip |
of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of | |
low-impedance output) and the tip of the high impedance 6,35 mm output. | |
Battery Life: | Up to 12 hours |

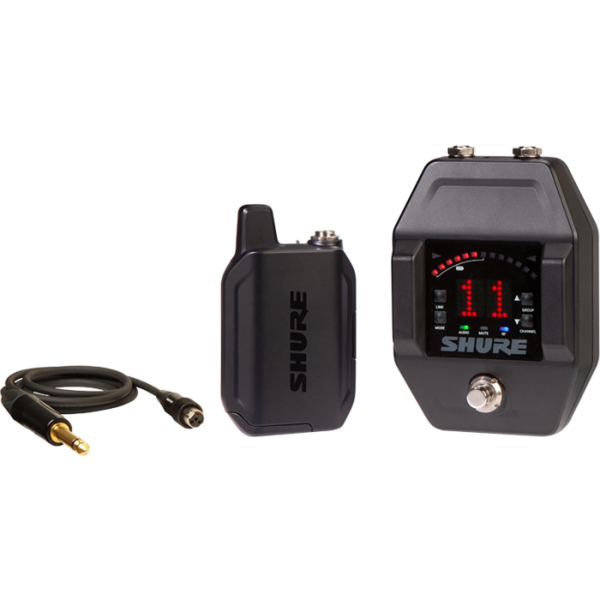

The package includes: WA305 Premium Guitar Cable, GLXD1+ Digital Bodypack, GLXD6+ Guitar Pedal, PS24 Power Supply and SB904 Rechargeable Lithium Ion Battery.
