Dimarzio DP174W

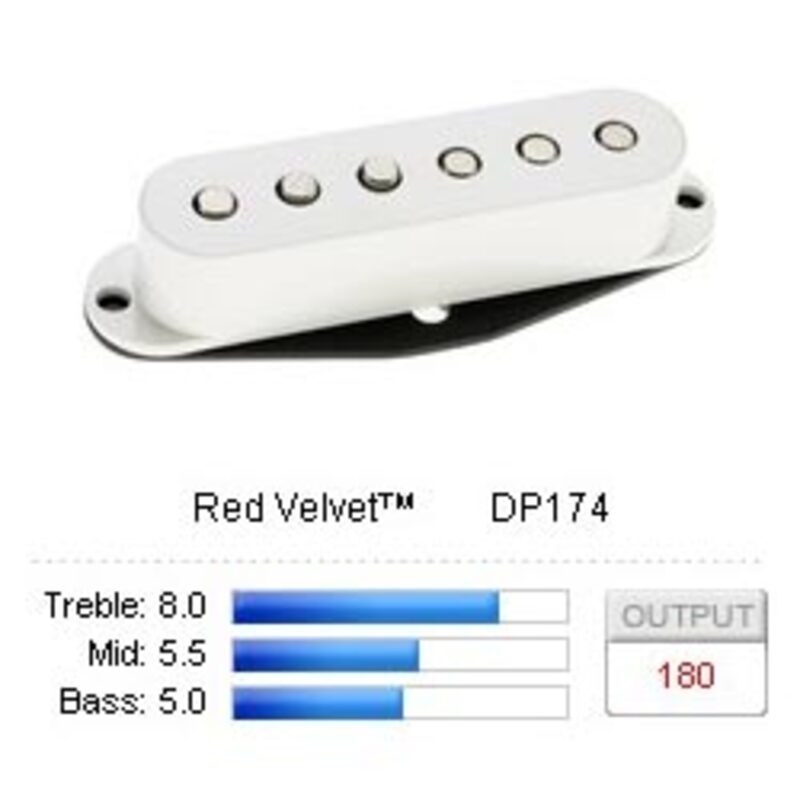

Red Velvet™ DP174 The difference between a vintage Strat® bridge pickup sound and a classic Broadcaster® or Tele® tone is mostly a matter of attack and definition — the Strat® stings and screams, while the Tele® punches and sings. We thought it would be neat to have a Strat® pickup that does both, and this is it. The punch comes from the bottom-loaded Power Plate™, the sting from custom coil-winding and the True Velvet™ magnet stagger, and a unique mid-range “growl” that’s a result of a hand-calibrated magnet structure. Try a Red Velvet™ bridge pickup with a pair of True Velvet™ pickups for a sound that’s both classic and new. Recommended For All positions Tech Talk One of the obvious effects of mounting a plate on the bottom of a pickup is to boost the magnetic field. We wanted the bigger sound that the plate provides, but we didn't want any increased magnet-pull, so we calibrate the magnetic field of every Red Velvet™ after it's assembled. The Red Velvet™ was originally designed for the bridge position, but it will also work well in the neck and middle, where it can be combined with a bridge humbucker like the Air Classic™. Specs Wiring: 2 Conductor Magnet: Alnico 5 Output mV: 180 DC Resistance: 8.52 Kohm Year of Introduction: 1994 Patent: n/a
