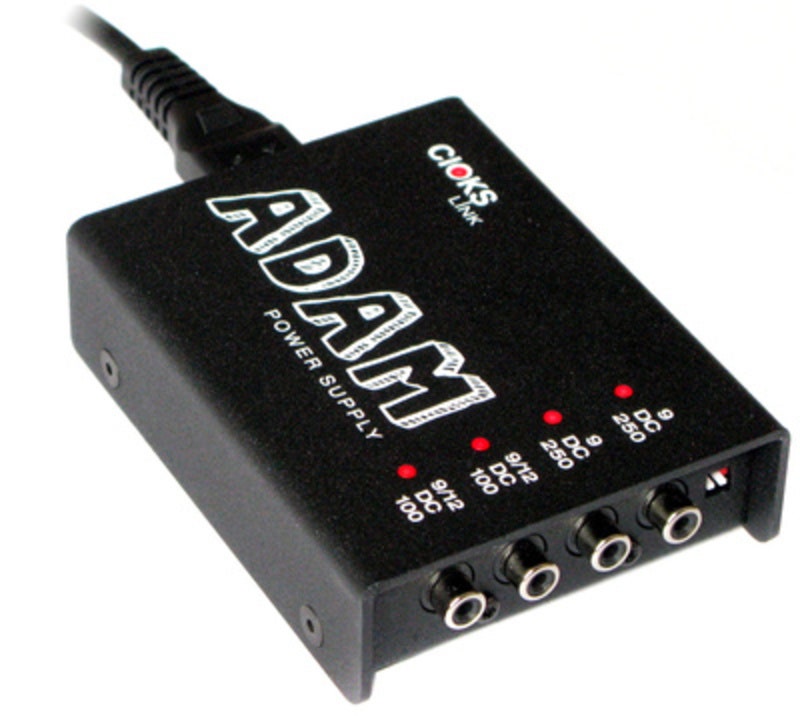

Cioks Adam Link

Adam link is a small and very flat power supply for effect pedals with 4 isolated outlets. Being only 31mm high it fits under the flat Pedaltrain nano, mini, new nano+ and all metro boards. It offers voltages 9 or 12V and a total output current of 700mA. The top two fixed 9V outlets will power any two Strymon or other two medium current pedals. The bottom two outlets, configurable to either 9 or 12V, will power two or
even more standard low current pedals when used with Split Flex or 3-way daisy chain Flex. If needed, all 4 isolated outlets will give you 9V DC in the default position of the settings switch.

FEATURES

• 4 isolated outlets with 9 or 12V
• total output current of 700mA
• two medium current 9V outlets with 250mA each
• can power any two Strymon pedals
• short circuit protection of all outlets
• LED monitoring of each outlet
• 120 or 230V mains voltage operation
• detachable mains power cord
• CIOKS unique mains link feature
• ADAM easily adds 4 extra isolated outlets to another link power supply
• total of 6 Flex cables included
• Split Flex for powering two pedals of one outlet included
• super flat design, fits under Pedaltrain nano, mini, the new nano+ and all metro boards
• compatible with Temple Audio pedalboards
• all pedalboard mounting hardware included

POWER

• Outlet 1-2: 9 or 12V DC / 100mA each
• Outlet 3-4: 9V DC / 250mA each
• Size: 115x88x31mm (excl. detachable rubber feet)
• Weight: 0,8kg
