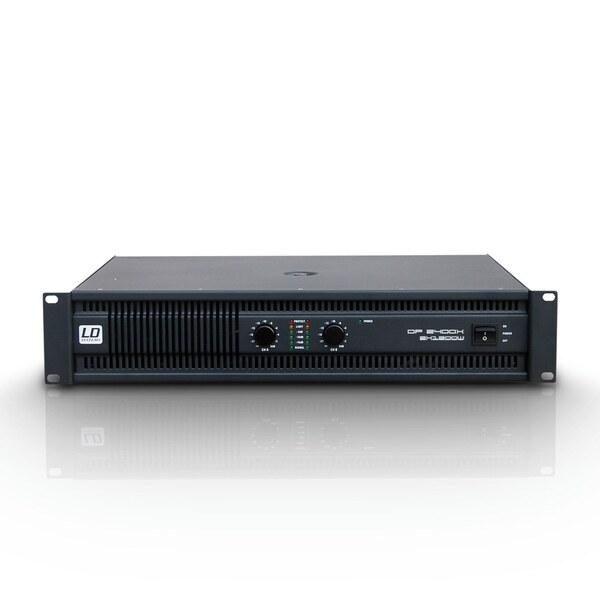

LD DP2400X

The DP2400X is the newest member of the DEEP family of power amplifiers.

In response to requests by many customers, we expanded this series with a new, powerful amplifier that is also compatible with 2-ohm systems. The key specifications are 2 x 1200 W at 2 ohms, 2 x 950 W at 4 ohms and 2 x 600 W at 8 ohms RMS power. Like the other power amplifiers in the DEEP series, the DP2400X uses class H circuitry powered by a conventional power supply. The protective circuitry is also identical with that used in the DEEP² series.

It also follows the DEEP² design in its integration of two temperature-dependent two step cooling fans. One special feature is a switchable 12 dB low-cut and/or 12 dB low-pass filter adjustable from 25 Hz to 150 Hz on both channels. This makes it possible to use the DP2400X as a bass amp or even realize a powerful bi-amping system. With the filters switched off, it becomes a conventional 2 channel power amp.

Specifications:

Output Power 1 kHz:
-2 Ohm: 2 x 1200W
-4 Ohm: 2 x 950W
-8 Ohm: 2 x 600W
-Bridge 4 Ohm: 2200W
-Bridge 8 Ohm: 1800W

Output Circuity: Class H
Frequency Range: 20 Hz - 20 kHz
THD: < 0.1 %
S/N Ratio: 106dB
Damping Factor: >450 at 8 Ohms
Crosstalk: >76 dB
Voltage Gain: 39 dB
Input Sensitivity: 0.775 V
Input Impedance: >20 kOhm
Protection: DC, Temp, Short Circuit, Over Current
Controls: On/Off, 2xVolume, Ground lift, 4x Bridge/Stereo
Indicators: Power, Signal, Level, Limit, Protect

Connectors:
-Input: XLR/6,3mm Jack (Combo)
-Link Output: XLR
-Output: Speakon compatible / Binding post
-AC Input: Volex Power Plug

Cooling System: High efficienty, two speed auto controlled fan
Cooling tunnel: from front to back
Power Supply: AC ~ 230V / 50-60 Hz
Dimensions (W x H x D): 483 x 88 x 350 mm
