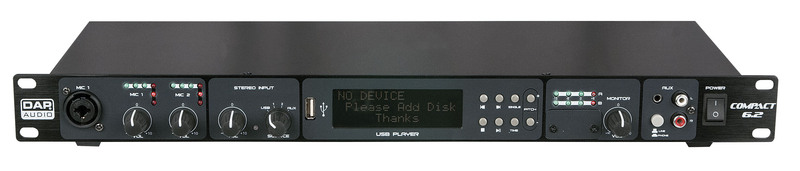

DAP Compact 6.2

Compact 6.2 is the ideal mixer for sport instructors. It has 2 microphone inputs with built-in compressor limiters and high-pass filters. This will help the instructor to have the correct level and perfect intelligibility. Dynamic range will be extended and distortion will be eliminated. It has one selector to choose the audio source which can be the internal USB mp3 player, the front input or 2 line inputs at the back panel. The MP3 player has ID3 text and can be pitched which is ideal for fitness, spinning and all kinds of group work outs. The front input can be used for a normal line level but also can be switched into a special Phone mode which adjusts the input sensitivity into the correct value for MP3 players, smartphones or tablets. Now you can playback your MP3 devices directly without signal loss. It has 2 master outputs with separate volume controls which can be locked and a separate monitor volume especially for the instructor. All technical settings like EQ, Gain, Phantom Power, Compression & Treshold are on the backside of the unit to be set by the installer. Now the instructor only has to set his source and mic level and doesn't need to worry about difficult settings. The Compact 6.2 is an all-in-one solution for your sport instructor, it's easy in use and has all features which are needed to give a work out instruction without worrying about anything else but the audience.

Specifications
Input channels: 2 x Microphone, combo XLR/Jack 2 x Line, RCA, 1 x Phone, 3,5mm jack / RCA
Output channels: 1x Master A RCA, 1x Master B, Balanced XLR/RCA, 1x Monitor RCA
USB supported format: FAT up to 32Gb
Master EQ: 80Hz, 2,5KHz, 12KHz, -6dB / +6dB
Frequency response: 20Hz - 20Khz
T.H.D.: <0.01%
Dimensions: 481 x 44 x 175 mm (LxHxD)
Powersupply: 2x15V AC, 50Hz (Adapter included)
Powerconsumption: 6Watt
Weight: 2,2 Kg
