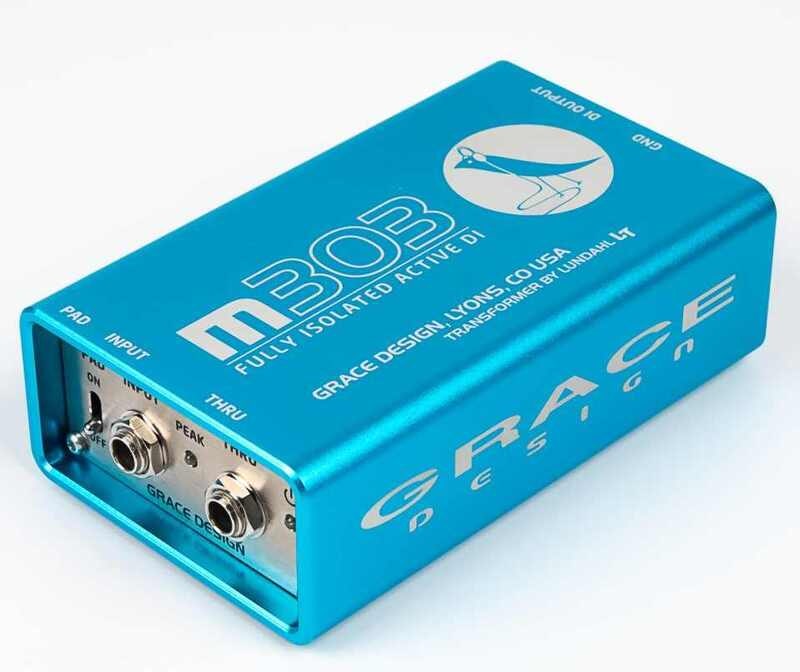

Grace Design m303

Artikelnummer 1089064

Active 1-channel DI Box with Galvanic Isolation, Lundahl Transformer, 13dB Pad, and Iso/Gnd Switch

Ej i lager, kontakta oss för leveranstid

Betala direkt, med faktura eller delbetalning - Spara kort och bankkonto - Smidigt och säkert - Klarna köparskydd

5350 kr/st

m303 features

Phantom powered active DI with full galvanic isolation.
Custom wound Lundahl transformer, magnetically shielded high nickel core
Ultra-low distortion (below -100dB at 1kHz, below -80dB at 50Hz)
Ultra-low noise (-118dBu, A weighting)
Ultra-wide bandwidth 20-80kHz
Wide dynamic range (124dB)
Excellent low frequency headroom THD+N @50Hz <-80dB (0.007%)
1M Ohm input impedance works with any line or pickup signal source
Peak indicator LED – 3dB before clipping
Power indicator LED
Efficient design only draws 4mA of phantom power current
Through signal connector
Fully ESD and RFI protected
Input pad (13dB) for high level signals
High-quality gold contact toggle switches
Very rugged 1/4″ wall extruded aluminum chassis, recessed connectors
