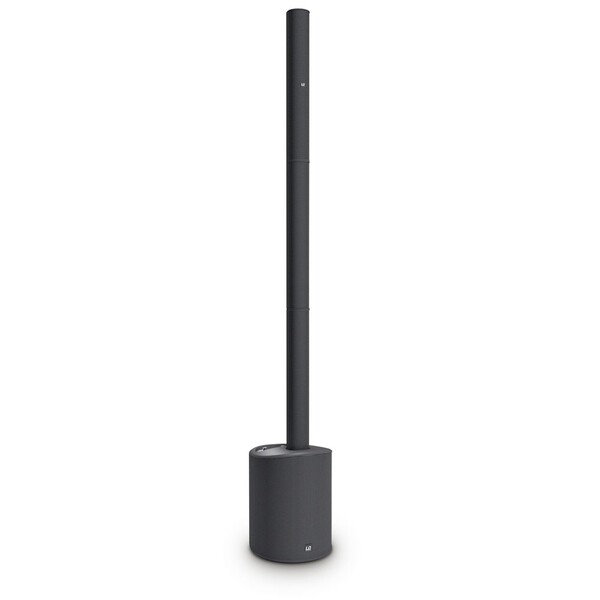

LD Systems MAUI 5 GO

Sporting all-in-one convenience, the MAUI® 5 GO is the ultimate in awesome high-quality sound you can take anywhere. The ultra-portable battery operated column PA system is powered by a high-capacity lithium-ion pack that provides up to 30 hours of continuous performance. The subwoofer integrates a smart charger, an external charging dock is available as accessory. With Bluetooth® stereo audio streaming and microphone, hi-Z instrument and line inputs, it is ideal for speech and music reproduction at private or corporate events, busking and all off-grid applications.



Weighing in under 13 kg (29 lbs.), the four-piece MAUI® 5 GO is ultra-portable and assembles in seconds with custom multi-pin connectors. The line array driver configuration results in extended coverage, and the system's wide dispersion and excellent feedback resistance eliminate the need for monitor wedges. With a total of 800 watts peak output, the MAUI® 5 GO is the loudest and best sounding battery-powered PA on the market covering audiences of 100 or more with ease.



To ensure superb audio quality in all situations, the system includes LD's proprietary LECC DSP with multiband limiter, equalizer, compressor and crossover functions. The integrated 4-channel mixer provides individual input, main and subwoofer level controls and a variable high frequency boost that allow you to quickly shape a perfectly balanced sound. Featuring LD System's patent pending Quick-Swap technology for instant battery pack replacement, the MAUI® 5 GO is ready to perform without time limit.





Specifications

Type: active

Number of subwoofers: 1

Colour: black

Max. SPL (peak): 120dB

Frequency response: 50 - 20000Hz

Dispersion (H x V): 120° x 20°

Rechargeable batteries: 29.6V / 5200 mAh

Battery manufacturer: LG Chem

Battery technology: Lithium-ion

Battery operation time at maximum load: 6 h @ 120 dB (DJ mode), 10 h @ 104 dB (Live music), 30 h @ 98 dB (Lounge mode)

Charging time: 2 hours up to 80%, 3 hours up to 100%

Overall height: 1985mm

Weight: 12,9kg



Woofer characteristics

Low/mid driver dimensions: 8"

Woofer size: 203.2mm

Woofer magnet: Ferrite

Woofer brand: Custom-made

Woofer voice coil: 2"

Woofer voice coil (mm): 50.8mm

Cabinet construction: vented

Cabinet material: ABS plastic

Subwoofer width: 305mm

Subwoofer height: 405mm

Subwoofer depth: 395mm

Subwoofer weight: 8.9kg



Mid/Hi System

Midrange size: 4 x 3"

Midrange size: 4 x 76.2mm

Midrange magnet: Neodymium

Midrange brand: Custom-made

Midrange voice coil: 1"

Midrange voice coil: 25.4mm

Mid/Hi system impedance: 4Ohm(s)

Loudspeaker inputs: 1

Speaker input connections: Custom-made multipin

Cabinet construction mid/high: Closed

Mid/Hi system cabinet material: ABS plastic

Mid/Hi system width: 82mm

Mid/Hi system height: 535mm

Mid/Hi system depth: 103mm

Mid/Hi system weight: 3.8kg



Amplifier module (integrated in subwoofer)

Amplifier: Class D

Amplifier output system (RMS): 200W

Amplifier output system (peak): 800W

Protection circuits: over-current, DSP-based multiband limiter, thermal overload, short circuit

Cooling: Convection

Controls: Line level, Sub level, Mic level, MP3 / Hi-Z level, Main level, BT level, Mono/stereo mode, On / Off, BT pairing

Indicators: Protect (protection circuit engaged), Limit, On, Signal

Operating voltage: Switching power supply, 100 V AC - 120 V AC, 50 - 60 Hz, 200 V AC - 240 V AC, 50 - 60 Hz (Automatic conversion)

Power consumption: 300 W

Line inputs: 2 x stereo

Line input connectors: XLR, 6.3 mm jack

Mic inputs: 1, 6.3 mm jack, XLR

MP3 inputs: 1

MP3 input connectors: 3.5 mm jack

Hi-Z inputs: 1

Hi-Z input connectors: 6.3 mm jack

Loudspeaker outputs: 1

Speaker output connections: Custom-made multipin



DSP characteristics

Bit depth AD/DA converter: 24 / 24bit

Internal sampling frequency: 48kHz
