Portable touring array system for live events, DJs and bands
25 premium transducers and WaveAhead® technology for breath-taking high-definition sound
1,000 watts RMS system power and 131 dB max. SPL
Fully scalable for far and near field applications
SmartLink® plug & play adapter for versatile application
Durable aluminum unibody satellite construction
18 mm birch ply subwoofer cabinet with Polyurea finish
Ergonomic handles for convenient transport and setup

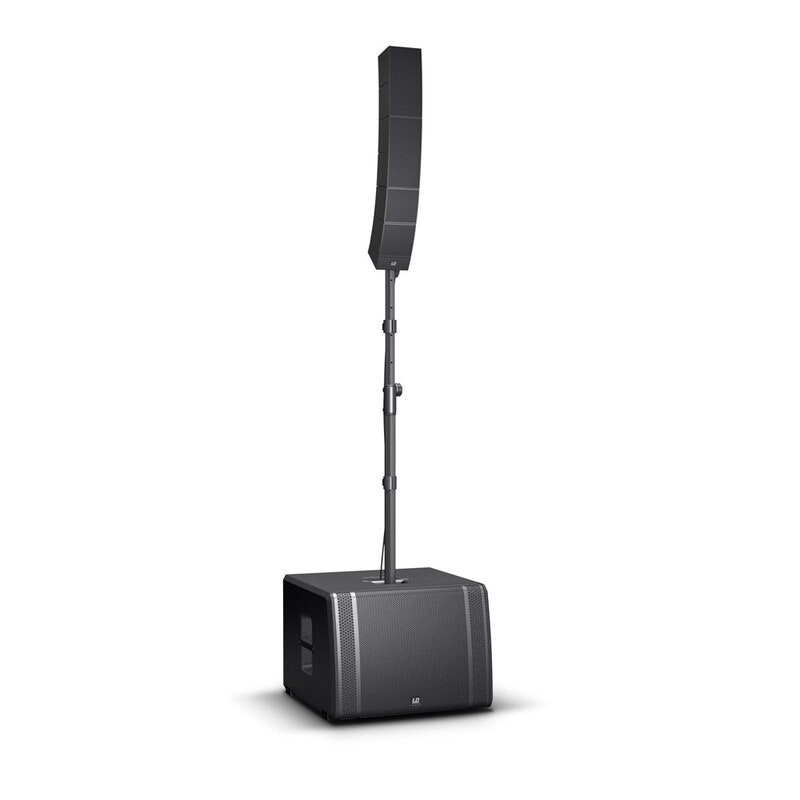

The compact, highly portable CURV 500® Touring Array System is fully scalable with up to four interlocking aluminium unibody line array elements operating on a SmartLink® plug and play adapter. It comes with two standard CURV satellites that feature a single 4" midrange and triple 1" high frequency drivers using LD Systems' WaveAhead® technology, and two duplex satellites with twice the speaker complement.
The ported 15" subwoofer base includes the CURV 500® Touring Array System's class D amplification with multiband limiter, short circuit, thermal and overcurrent protection. It sports comprehensive connectivity on combo and speakON compatible connectors, six DSP presets for quick system configuration, an M20 pole mount and three ergonomic handles for easy portability. Providing impressive versatility, the lightweight CURV 500® Touring Set delivers high definition audio with powerful punch, superb balance and extended vertical and horizontal coverage. The set includes a subwoofer pole and dedicated speaker cable.
Specifications
System output (RMS): 1000 W
Colour: Black
Number of array satellites: 4
Number of Smartlink adapters: 1
Number of subwoofers: 1
Max. SPL (continuous): 125 dB
Max. SPL (peak): 131 dB
Frequency response: 40 - 20000 Hz
Dispersion (H x V): 110° horizontal, vertical 30 °
RMS: Subwoofer: 700 W , Array Satellites: 300 W
Peak power: Subwoofer: 1400 W , Array Satellites: 600 W
Weight: 48,2 kg
Amplifier: Class D
Protection circuits: DSP-based multiband limiter , overload , short circuit , thermal overload
Accessories (included)
Distance bar , Power cord , Speaker cable CURV 500 CABLE 1 (2.2 m)
Subwoofer
Low/mid driver dimensions: 15 "
Low/mid driver dimensions (mm): 381 mm
Cabinet construction: vented
Housing material: plywood
Cabinet surface: Polyurea
Dimensions Subwoofer (W x H x D): 600 x 437 x587 mm
Subwoofer weight: 35.5 kg
Subwoofer features: 4 ergonomic handels , 6 System DSP Presets , Powercon , speakON output , Threaded flange M20
LDCURV500DSAT - LD Systems CURV 500 D SAT Duplex Satellite Black
Product type: Installation Loudspeakers
Type: Array Satellites
Midrange size: 2 x 4 "
Tweeter dimensions: 6 x 1 "
Load rating (RMS): 80 W
Peak power: 160 W
Dispersion: 110° horizontal, vertical (each satellite) 5 °
Impedance: 8 Ohm(s)
Material: die-cast aluminium
Surface: powder coated
Colour: Black
Width: 122 mm
Height: 240 mm
Depth: 126 mm
Weight: 3,3 kg
LDCURV500S2 - LD Systems CURV 500 S2 Two Array satellites for the CURV 500® Portable Array System, black
Product type: PA Complete Systems Accessories
Midrange size: 1 x 4 "
Tweeter dimensions: 3 x 1 "
Load rating (RMS): 40 W
Peak power: 80 W
Dispersion: 110° horizontal, vertical (each satellite) 10 °
Impedance: 16 Ohm(s)
Height: 122 mm
Depth: 122 mm
Weight: 3,44 kg
Features: WaveAhead® Technology
LDCURV500SLA - LD Systems CURV 500 SLA SmartLink Adapter for up to four LD CURV 500® satellites, black
Type: Smartlink® Adapter
Connectors: 1x Speakon compatible
Depth: 57 mm
Weight: 0,35 kg
Features: 2x M6 thread for optional wall mount
