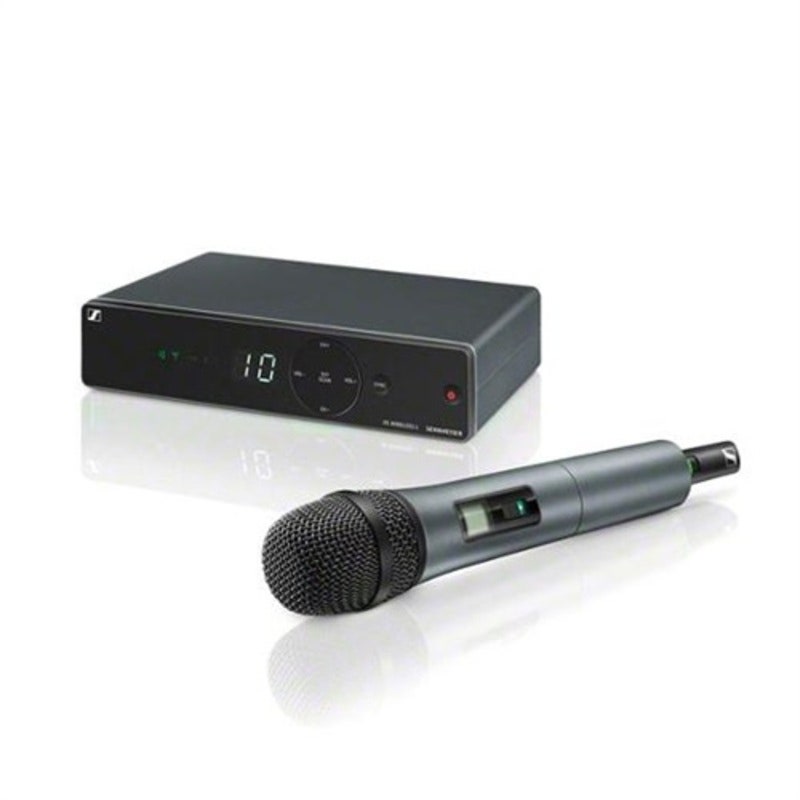

Sennheiser XSW 1-825-E

Features:

• Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
• Automatic frequency management and synchronization via remote channel for easy setup
• Up to 10 compatible channels
• Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules (e825 or e835)
• Antenna-switching diversity reception
• Integrated antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Selectable UHF frequencies within a large bandwidth
• Up to 10 compatible channels


Specifications:

• Dimensions    approx. 200 x 42 x 127 mm
• THD, total harmonic distortion    ≤ 0.9%
• Weight    approx. 340g
• approx. 245g
• Pick-up pattern    cardioid
• Signal-to-noise ratio    ≥ 103 dBA
• RF output power    10 mW
• Switching bandwidth    up to 24 MHz
• Operating time    approx. 10 hrs
• Modulation    wideband FM
• Power supply    Receiver: 12 V DC nom. / 300 mA
• Microphone: 2 AA size batteries, 1.5 V
• Output voltage    1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• Housing    rugged ABS housing
• Dynamic range    dynamic
• Frequency    8 frequency banks, each with up to 10 factory-preset channels
• Frequency range    A: 548-572 MHz, GB: 606-630 MHz
• B: 614-638 MHz
• C: 766-790 MHz
• D: 794-806 MHz
• E: 821-832 MHz, 863-865 MHz
• K: 925-937.5 MHz
• Sensitivity    < 3 μV at 52 dB(A)rms S/N
• Squelch    adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
• Synchronization    2.4 GHz, Low Power OQPSK (only active during synchronization)
• Input sensitivity    1.5 mV / Pa
• AF frequency response    Receiver: 50 to 16,000 Hz (–3 dB)
• SKM 825: 80-14,000 Hz
• SKM 835: 80-16,000 Hz
• Adjustment Range Transmitter    0 to -30 dB, adjustable in 10 dB steps
• Audio adjustment range    45 dB, adjustable in 5-dB steps
• Line / Mic level    20 dB, switchable
• Temperature Range    operation: 0°C to +40°C, storage: –20°C to +70°C
• Receiver Principle    double superheterodyne
• Diversity principle    Antenna switching diversity via internal antennas
