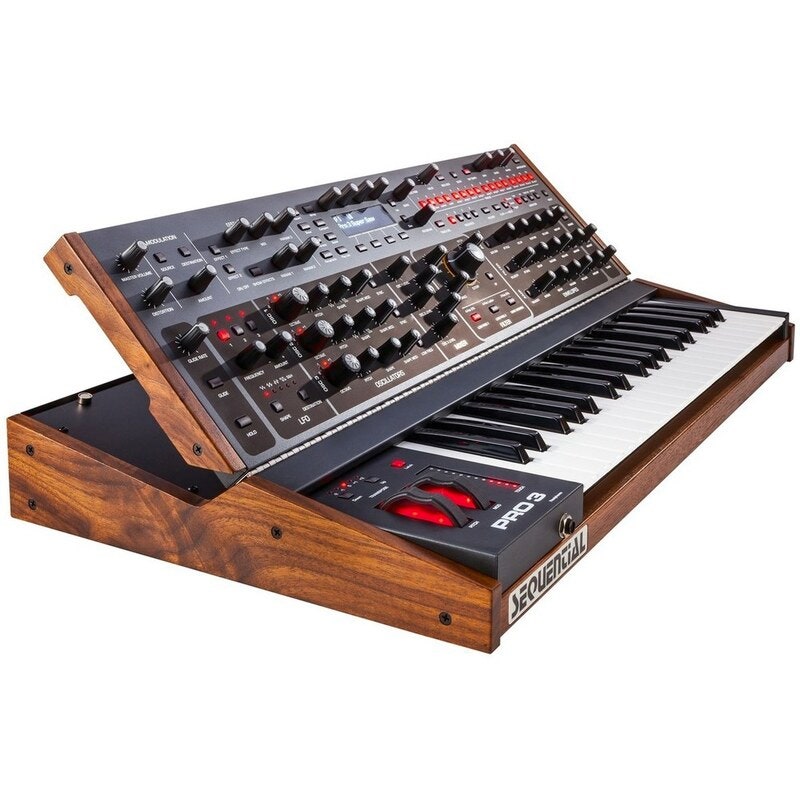

Sequential Pro 3 Special Edition

Sequential has added a significant enhancement to the Pro 3 multi-filter mono synth — support for user-created wavetables. Sequential’s web-based utility Wavetable Generator allows users to convert up to 16 single-cycle waves into a Pro 3 compatible wavetable and load it into any of the 32 user wavetable slots on the synth. This significantly expands the sound palette of the instrument. For more information click here

PRO 3 SPECIFICATIONS

3 OSCILLATORS

• Two analog, voltage-controlled oscillators
• One DSP-based digital oscillator
• Analog oscillators produce three classic wave shapes: (triangle, saw, pulse) with variable shape modulation/pulse width on each
• Digital oscillator produce 32 digital wavetables of 16 waves each with wave morphing, plus classic wave shapes (sine, triangle, saw, variable-width pulse) and super saw
• Digital oscillator 3 can function as an LFO for complex wavetable-based modulation
• White noise generator
• Hard sync, per-oscillator Glide, Oscillator Slop

3-VOICE PARAPHONIC PLAYABILITY

• 3-voice paraphonic mode with individually-gated envelopes per oscillator

3 FILTERS

• Three classic filter types
• Filter 1 is a 4-pole, 24 dB per-octave, Prophet-6™ low-pass filter
• Filter 2 is a classic, 4-pole, 24 dB per-octave, transistor ladder filter with optional resonance compensation
• Filter 3 is a 2-pole, 12 db per-octave, OB-6™ state-variable filter. It can be continuously varied between low-pass, notch, and high-pass operation, with an optional band-pass mode.

3 LFOS

• Three syncable LFOs with phase offset and slew per LFO
• Five waveshapes: triangle, saw, reverse saw, square, and S&H

4 ENVELOPES

• Four ADSR envelopes with delay (Filter, VCA, and two Auxiliary envelopes)
• Envelopes freely assignable to multiple modulation destinations
• All envelopes can repeat/loop

FEEDBACK AND DISTORTION

• Tuned feedback with Grunge for extra-aggressive tonal destruction
• Programmable analog distortion

32-SLOT MODULATION MATRIX

• 32 slot modulation matrix with over 46 mod sources and over 171 mod destinations
• Modulation assignment buttons enable quick and easy modulation routing
• Mod Matrix runs at audio rates

4 CONTROL VOLTAGE INS & OUTS AND GATE OUT

• Four control voltage (CV) inputs and outputs for interfacing with modular synths and other CV-compatible devices
• Parameters that can be sent to CV outputs include oscillators, LFOs, envelopes, sequencer tracks and any other source within the modulation matrix. Runs at audio rates.
• Gate Out for triggering external CV-compatible devices. Any CV in can be used as a gate input.

16-TRACK SEQUENCER

• Advanced sequencer with three modes: normal, gated, and trigger
• 16 tracks and 4 linkable 16-step phrases
• Per-step ratcheting, duration, and velocity
• Multiple playback modes: forward, reverse, forward/reverse, random
• Supports real-time/step input, rests, and variable-length sequences
• Syncs to MIDI clock and external audio and CV input
• Sequences freely assignable to any modulation destination

ARPEGGIATOR

• Sophisticated arpeggiator with up, down, up+down, random, assign modes
• Syncs to MIDI clock and external audio and CV inputs
• Re-latching arpeggiation
• Runs concurrent with Sequencer for arpeggiated patterns with parameter automation

CONTROLS

• Over 60 knobs and 70 buttons enable deep, comprehensive editing with minimal menu diving
• Backlit pitch and mod wheels are easily visible in low-light situations and have a smooth, precise response.
• Independently adjustable upper and lower pitch wheel range
• Position-sensitive latchable touch slider for enhanced interactivity and control
• Full-sized, three-octave, semi-weighted keyboard with velocity and aftertouch

MEMORY

• 512 user and 512 factory programs
• Playlist mode for generating easily accessible set lists of your favorite programs

IN/OUT

• 1 MIDI In, 1 MIDI Out, and 1 MIDI Thru/Out 2 port
• USB port for bidirectional MIDI communication
• 4 CV inputs (4 x 1/8″ jack) with -10v to +10v voltage range
• 4 CV outputs (4 x 1/8″ jack) with -10v to +10v voltage range
• 1 Gate Out (1/8″ jack)
• 1 Sustain/footswitch input
• 1 Expression pedal input
• 1 External audio input (1/4″ phone jack)
• Main stereo output (2 x 1/4″ phone jack)
• Headphone out (stereo 1/4″ phone jack)

POWER

• 1 universal IEC AC power inlet for internal power supply
• Operates worldwide on voltages between 100-240v, 50-60Hz, 30 watts maximum

PHYSICAL SPECS

• Premium, 3-octave, semi-weighted Fatar keyboard
• 26.5″ L x 13″ W x 3.5″ H (67.3 cm x 33 cm x 8.9 cm)
