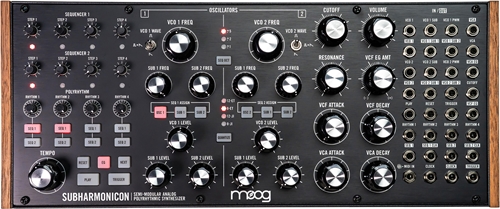

Moog Subharmonicon

ANALOG SOUND ENGINE

SOURCES: VCO 1, SUB 1, SUB 2 / VCO 2, SUB 1, SUB 2

FILTER: Self-Oscillating Ladder Filter, Low-Pass, 4-Pole (-24 dB/Octave)

ENVELOPES: VCA EG (Attack, Decay); VCF EG (Attack, Decay)

ANALOG SEQUENCERS (x2)

STEPS: 4 Steps per Sequencer, selectable Quantization

CLOCK: Driven by any and all of the Rhythm Generators

RHYTHM GENERATORS (x4)

RHYTHM: Derived by dividing the Tempo by an integer value (1-16)

CLOCK: 20 BPM to 3,000 BPM (Beats per Minute; 1 Pulse per Quarter-note), MIDI Clock, EXT CLOCK

PATCHBAY

JACKS: 32 x 3.5mm

INPUTS: 17 Input Jacks

OUTPUTS: 15 Output Jacks

MIDI: 3.5mm MIDI Input (Type A dongle included)

REAR PANEL

AUDIO: 1⁄4” TRS Headphone or 1⁄4” TS Instrument

POWER: Power supply connection

SECURITY: Kensington lock slot

WEIGHTS AND DIMENSIONS

PRODUCT:

Imperial (in.): 4.2h x 12.57w x 5.24d

Metric (cm): 10.67h x 31.93w x 13.31d

Weight: 3.5 lbs.

Metric Weight: 1.58 kg

SHIPPING:

Imperial (in.): 8h x 15w x 9d

Metric (cm): 20.32h x 38.1w x 22.86d

Imperial Weight: 6 lbs

Metric Weight: 2.72 kg

POWER SUPPLY (INCLUDED)

STYLE: Wall adapter; barrel connection; center-pin positive

INPUT: 100 – 240VAC; 50 Hz – 60 Hz

OUTPUT: +12VDC; 1200mA

POWER CONSUMPTION

TYPICAL: 4.8 Watts

EURORACK SPECS

CURRENT DRAW: 360mA (maximum) from +12VDC (10-pin header)

MOUNTING DIMS: 60HP (1” / 26mm Module Depth
