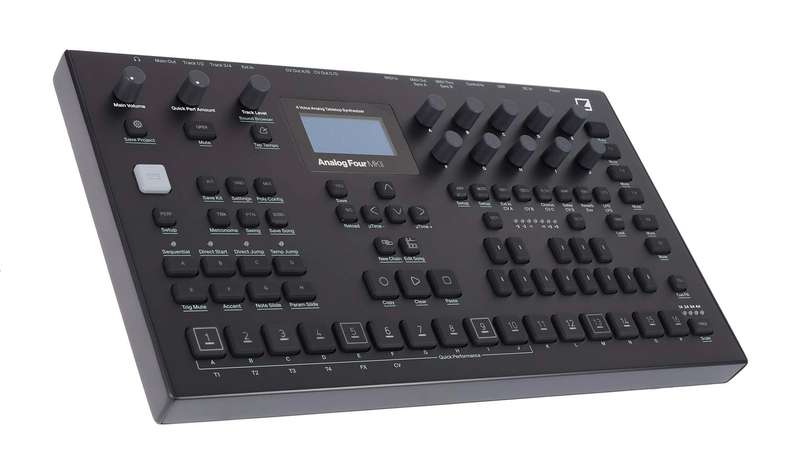

Analog Four MKII is the new benchmark for analog tabletop synthesizers. Tweaked circuitry delivering deeper bass than ever, new powerful sound control possibilities, dedicated outputs for each voice. Not to mention the ultra durable buttons, the big OLED screen and the premium design. No stone has been left unturned.
- Completely analog signal path
- 4 x analog analog oscillator, 1x noise generator, 1x 4-pole analog lowpass filter, 1 x 2-pole analog multimode filter, 1 x analog overdrive circuit, 2 x assignable LFO, 1 x Amp envelope, 2 x assignable envelope curves
- Up to 4 note polyphony
- Up to 4 part multitimbral
- Up to 4 notes unison playback
- Chorus, Delay, and Reverb Send effects
- Fast performance checks
- Live-friendly electron sequencer
- CV / gate sequences
- 1 x 6.3 mm headphone output
- 2x 6.3 mm Impedance balanced main output
- 4 x 6.3 mm stereo voice output
- 4 x 6.3 mm CV / gate output
- 2 x 6.3 mm unbalanced external input
- 2 x 6.3 mm Expression / CV input
- 1 x USB 2.0 High Speed Port
- MIDI IN / OUT / THRU Connections with DIN Sync out
- 128 x 64 OLED screen
- Precise Hi-Res encoder
- Durable, backlit buttons
- Fully compatible with Analog four MKI projects / data
- Dimensions (W x D x H). 385 × 225 × 82 mm including buttons, power switch and rubber feet
- Weight approx. 2.4 kg
