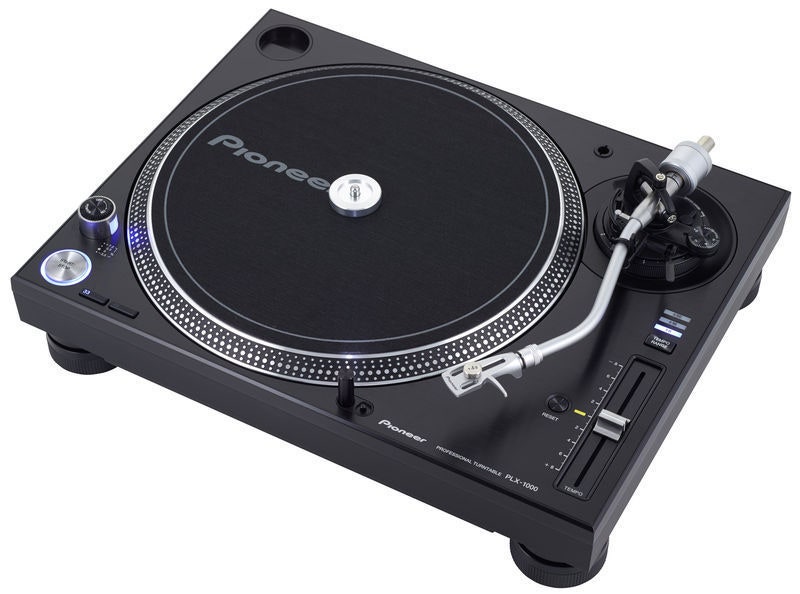

Pioneer PLX-1000 Professional Direct Drive Turntable

Building on expertise accumulated over many years as the top international manufacturer of DJ equipment, Pioneer has carried out an in-depth investigation into turntable users’ needs in order to produce a user-friendly control layout. This makes it possible to enjoy intuitive DJ play without ever losing your way.

Thanks to its high-torque direct drive system, the “PLX-1000” provides stable rotation that can withstand use in venues such as clubs, achieving starting torque of at least 4.5kg·cm and reaching the fixed rotation speed within just 0.3 seconds (at 33 1/3 rpm).

The variable width of tempo can be selected from ±8%, ±16% and ±50%, and these wide-ranging tempo controls expand the possibilities of DJ play. Also, simply pressing the “RESET” button instantly reverts to the fixed rotation speed at ±0%.



MAIN SPECIFICATIONS
Turntable
Drive method: Quartz lock servo type direct drive
Motor: 3-phase brushless DC motor
Braking system: Electronic brake
Rotation speed: 33 1/3 rpm, 45 rpm
Rotation speed adjustment range: ±8%, ±16%, ±50%
Wow and flutter: 0.1% or less WRMS (JIS WTD)
S/N ratio: 70 dB (DIN-B)
Turntable: Aluminium die-casting diameter: 332 mm
Starting torque: 4.5kg·cm or more
Start time: 0.3 seconds (at 33? rpm)

Tone arm
Arm type: Universal type S-shape tone arm, gimbal-supported type bearing structure, static balance type
Effective length: 230 mm
Overhang: 15 mm
Tracking error: Within 3 degrees
Arm height adjustment range: 6 mm
Stylus pressure variable range: 0 g to 4.0 g (1 scale 0.1 g)
Proper cartridge weight: 3.5 g to 13 g (single cartridge)
- When shell weight is used: 3.5 g to 6.5 g
- When only balance weight is used: 6.0 g to 10 g
- When sub weight is used: 9.5 g to 13 g

Main unit
Main unit weight: 13.1 kg
Maximum dimensions (W x D x H): 453 x 353 x 159 mm
Output: RCA × 1
Included accessories: Turntable, turntable sheet, slip mat, slip sheet, dust cover, balance weight, head shell, sub weight, head shell, shell weight, adapter for EP record, power cord, Audio cable, ground wire, operating instructions
