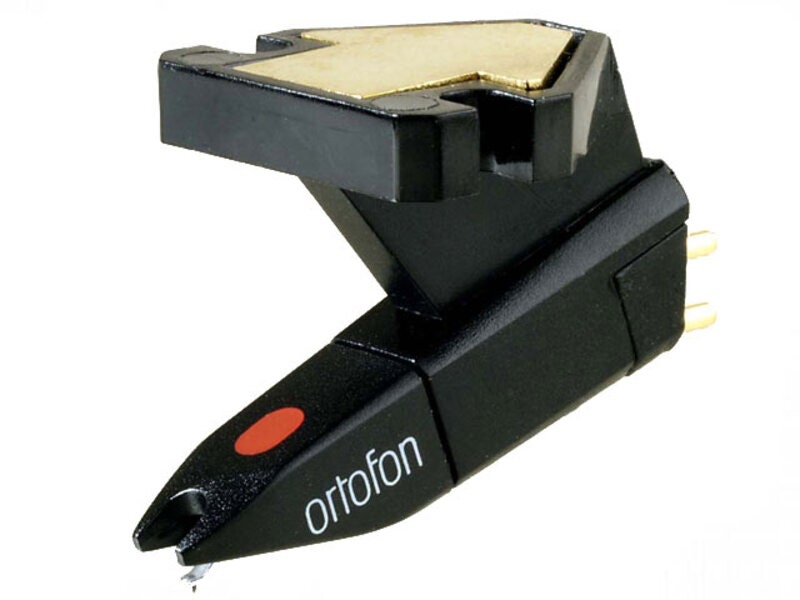

Ortofon OM Pro S Single

New DJ? This entry-level cartridge is perfect for newcomers on the DJ scene who want to start off with decent but not too expensive equipment.

The Pro S has a spherical diamond stylus which minimizes scratching and a solid cantilever which can survive hectic activity at the turntable.

No matter what the application, the Pro S provides remarkable versatility for virtually any setting.

The sound quality is absolutely not to worry about.

The Pro S is a consistent performer and a fine all-arounder!

Specifications

Download userguide

• Channel balance at 1 kHz

  2 dB

• Output voltage at 1 kHz, 5cm/sec

  5 mV

• Channel seperation at 1 kHz

  20 dB

• Channel seperation at 15 kHz

  15 dB

• Tracking ability at 315Hz at recommended tracking force

  70 μm

• Compliance, dynamic, lateral

  7 μm/m N

• Stylus type

  Spherical

• Stylus tip radius

  R 18 μm

• Tracking force range

  3 - 5 g

• Tracking force, recommended

  4 g

• Tracking angle

  20°

• Internal impedance, DC resistance

  750 Ohm

• Cartridge weight

  5 g

• Recommended load resistance

  47 kOhm

• Internal inductance

  450 mH

• Recommended load capacitance

  200-600 pF

• Replacement stylus
